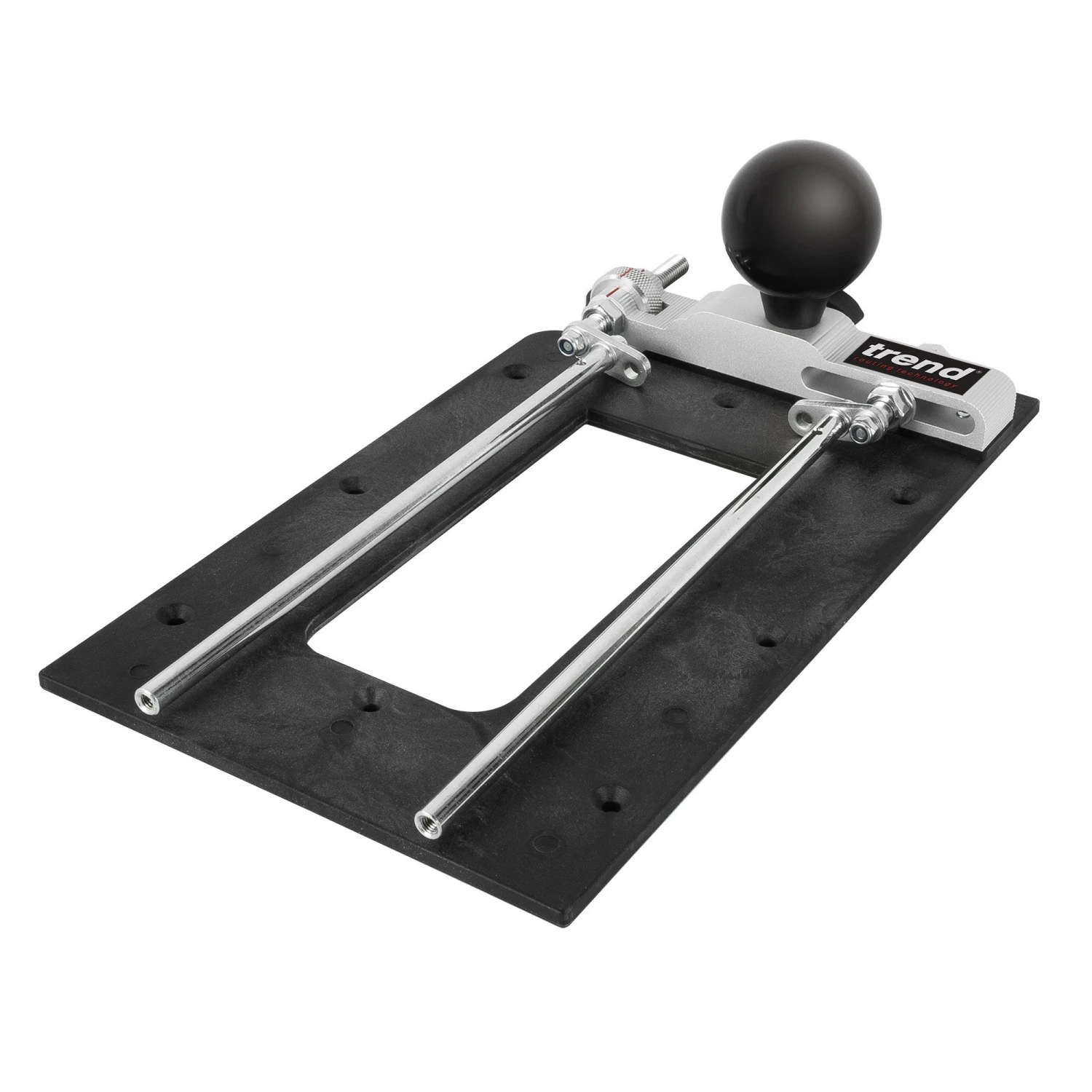

CRB – Combination Router Base

The Combination Router Base is a retro fit, quick change, multi-functional router base designed to:

• Increase the overall versatility of the router.
• Improve the quality of finish of every routing pass.
• Reduce the possibility of error.
• Increase stability during routing.
• Increase the level of precision achieved.
• Save set up time between tasks.
• Save space on storing hand made jigs.

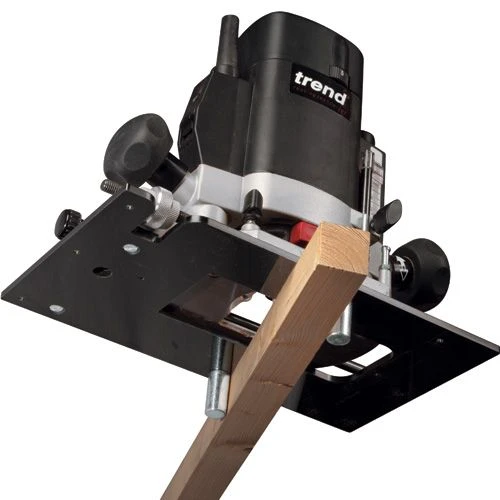

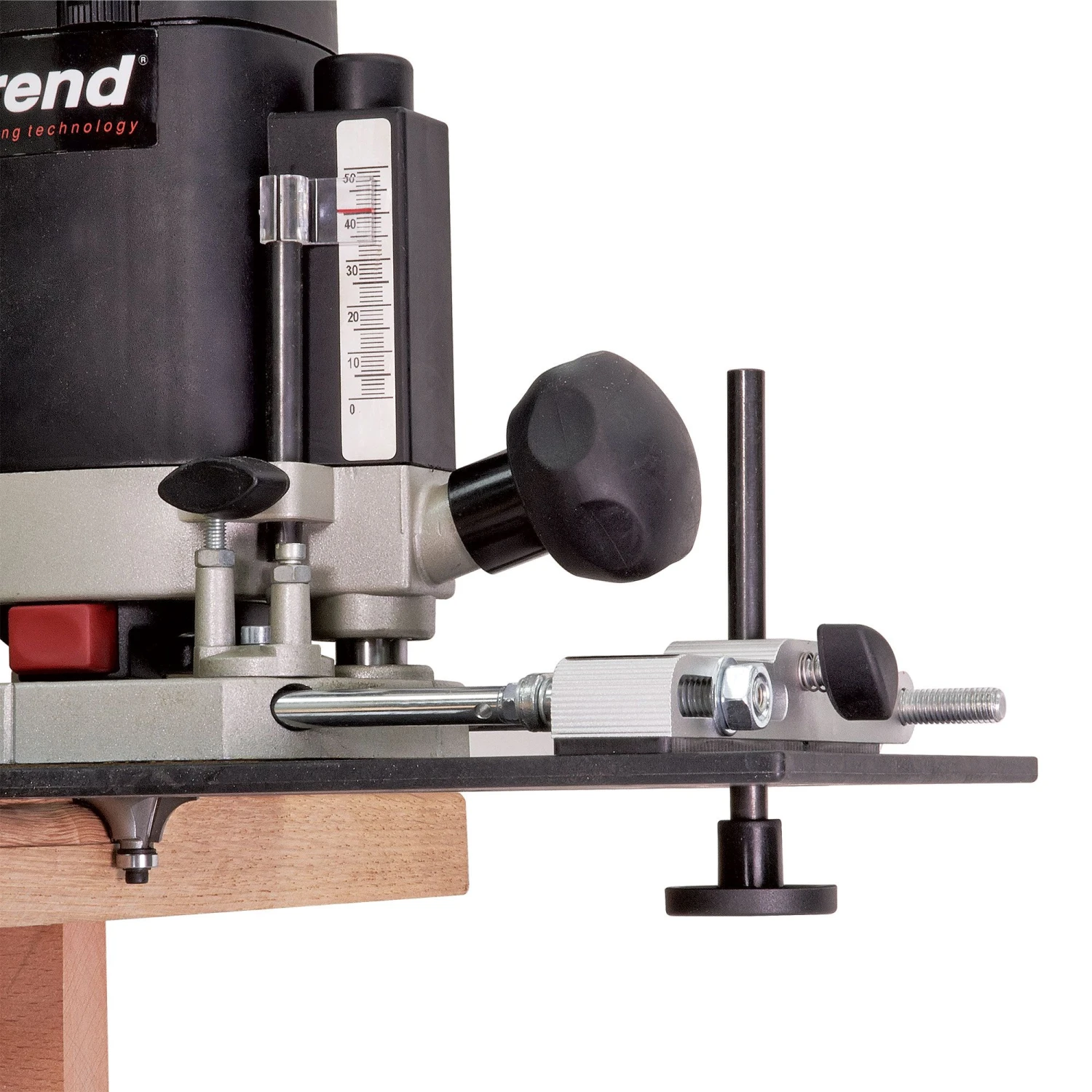

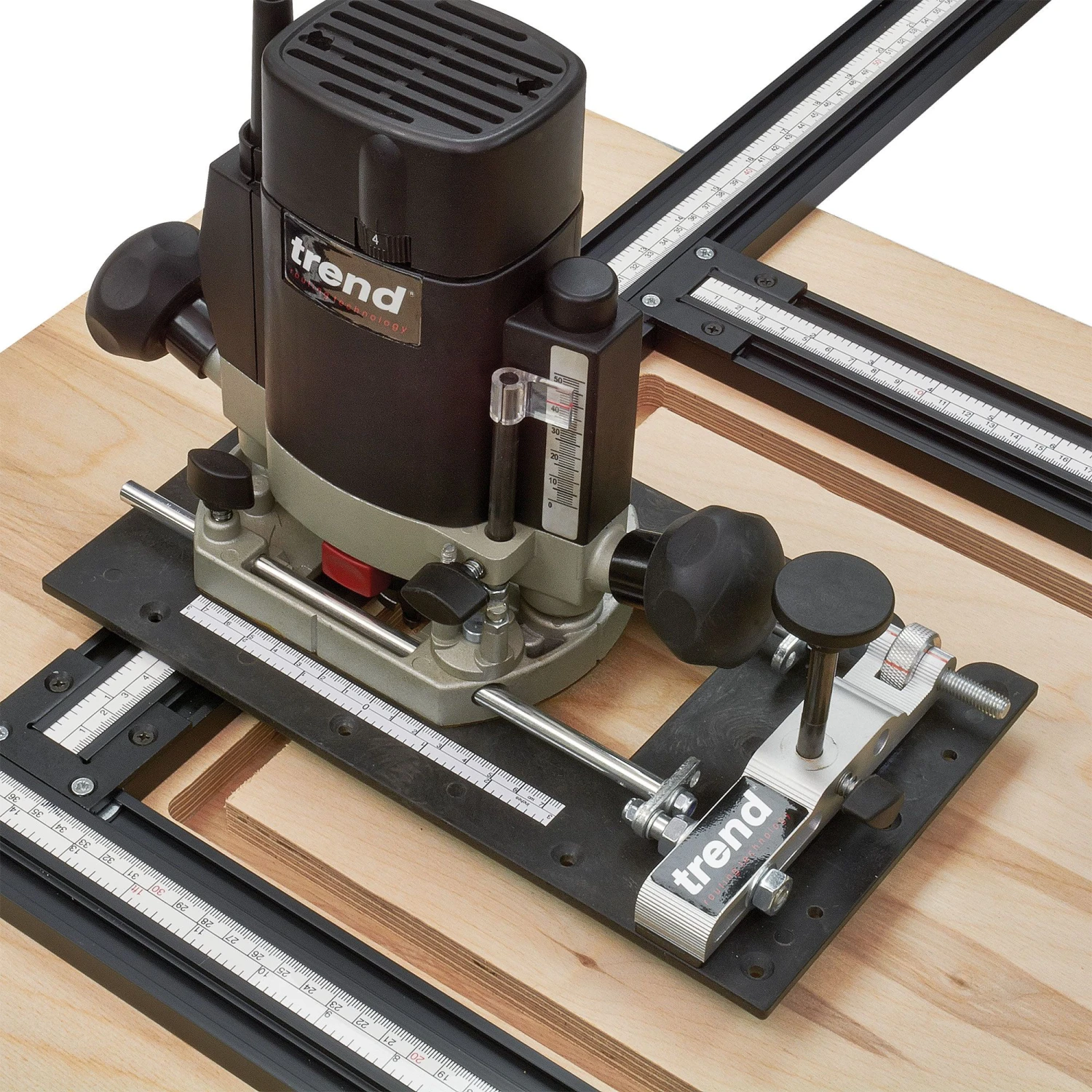

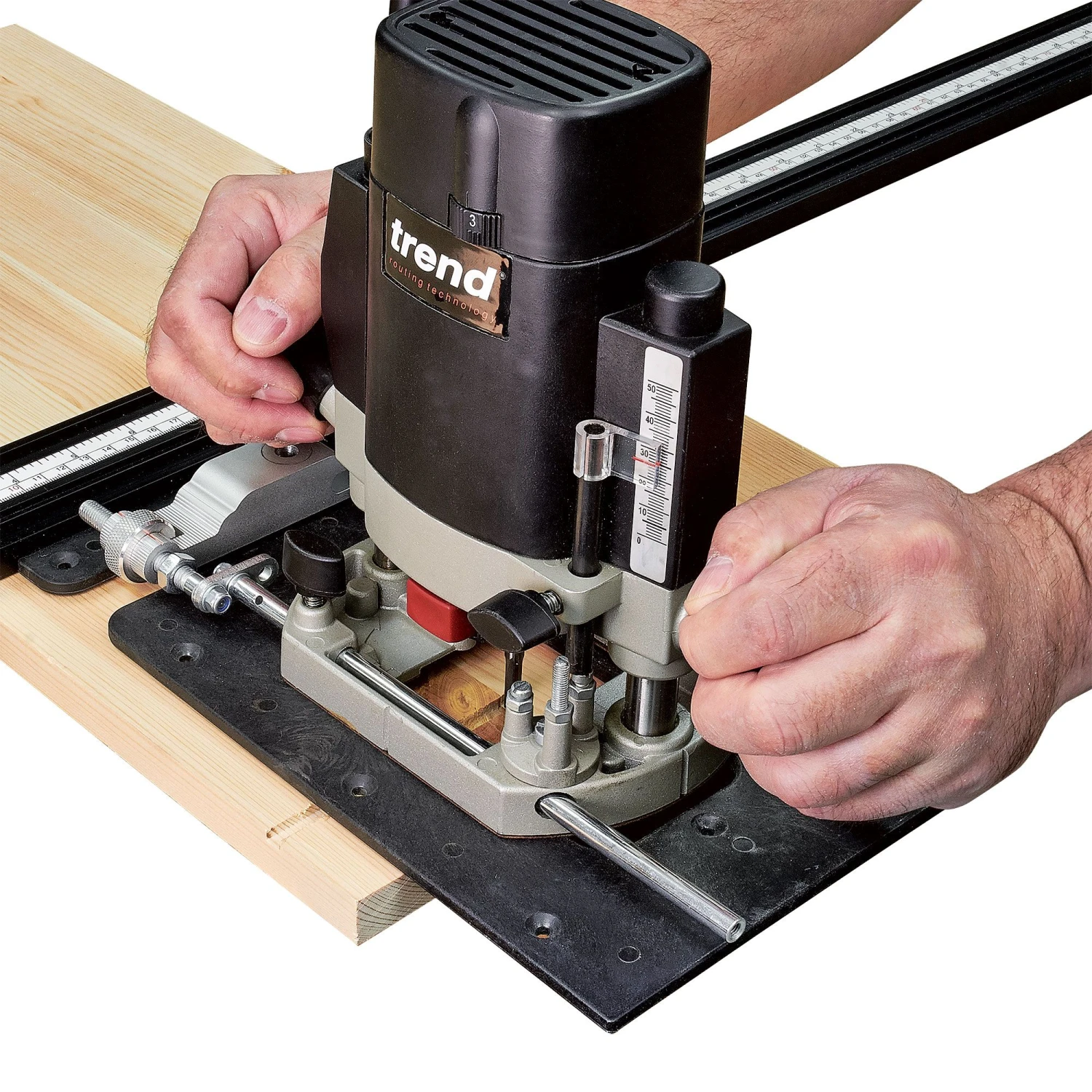

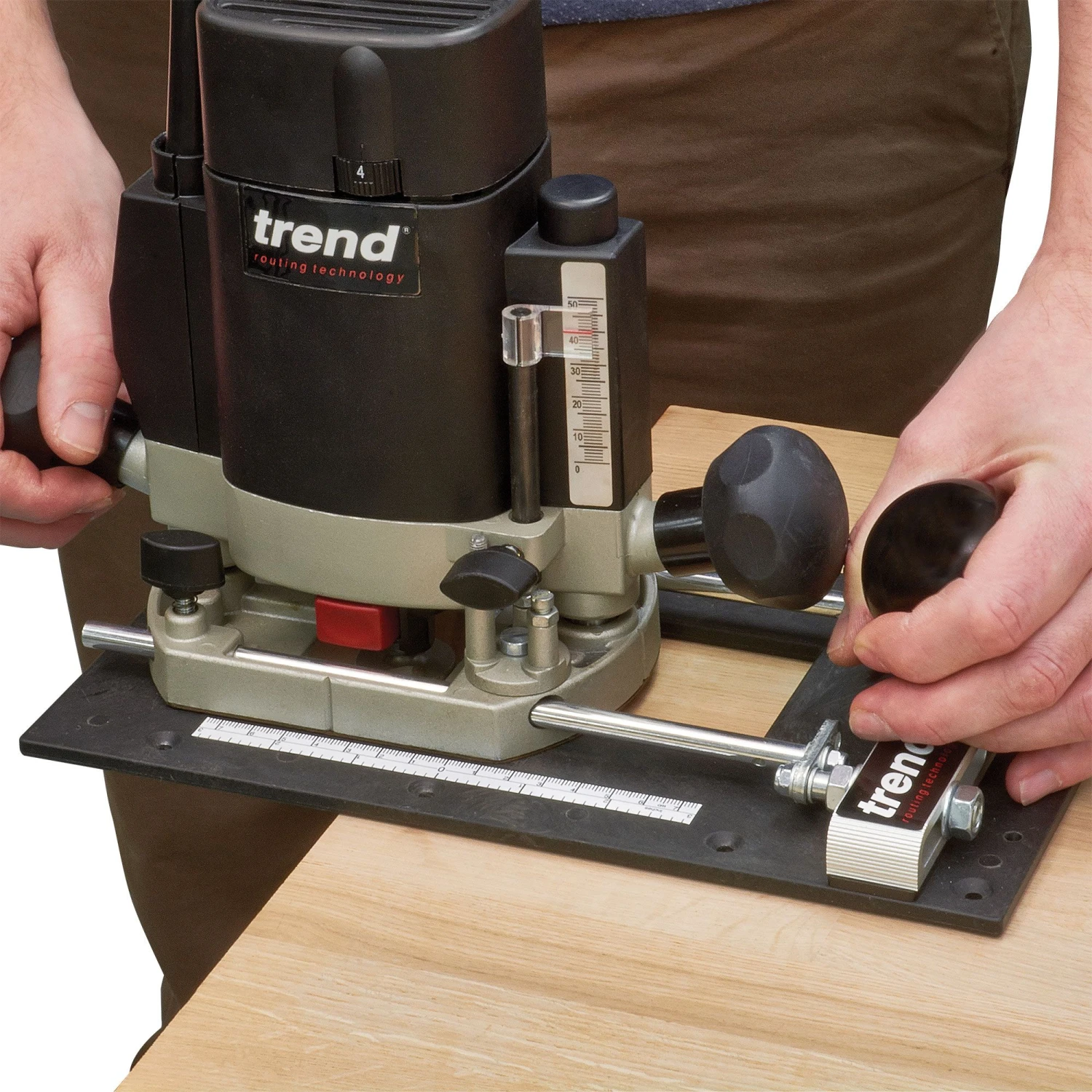

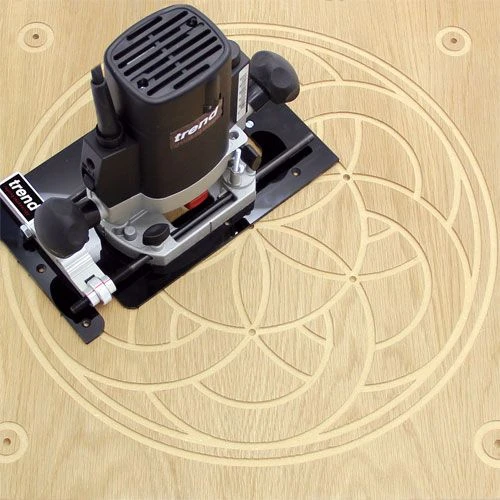

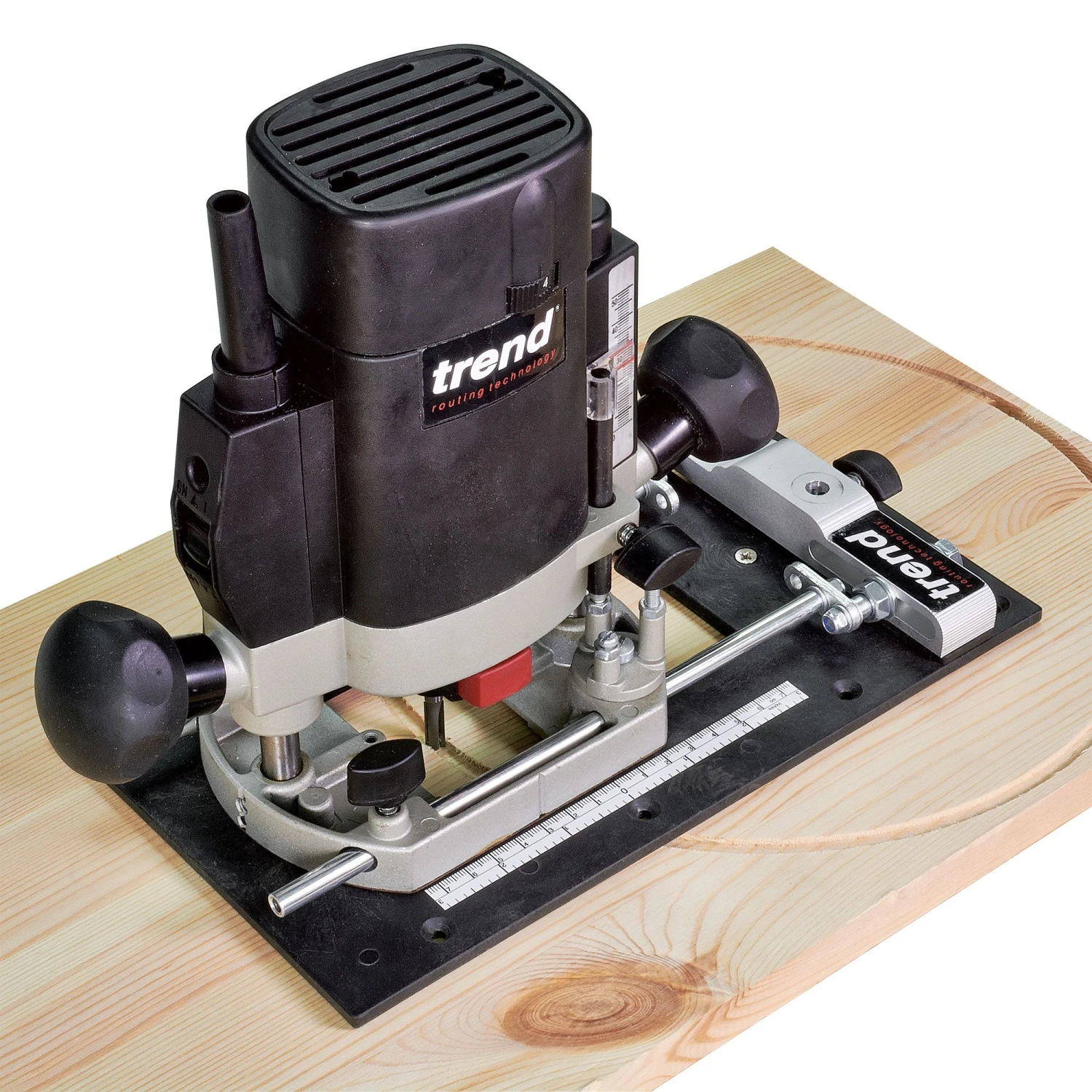

• The CRB has seven functions – an offset baseplate, router compass from 19mm to 224mm radius, adjustable trenching with a clamp guide with 40mm micro adjustment, adjustable anti-tilt support, adjustable mortising of timber from 50mm to 200mm width, adjustable false panel groove copier and also enhances the Varijig frame system as an anti-tilt device when used with routers that can accept Euro style guide bushes (a special guide bush ref GB40/B is required).
• The CRB will fit most routers with two 8mm, 10mm and 12mm fence rod holes at centres of 78mm to 130mm.
• An accessory quick fit edge trimming base is available for trimming lipping up to 16mm wide and 6mm projection, ref. CRB/TB.
• Larger circles can be accommodated by using ccessory extension rods ref. N/COMPASS/AEX to increase radius by 560mm.
• Design Reg. No. 3003693.
