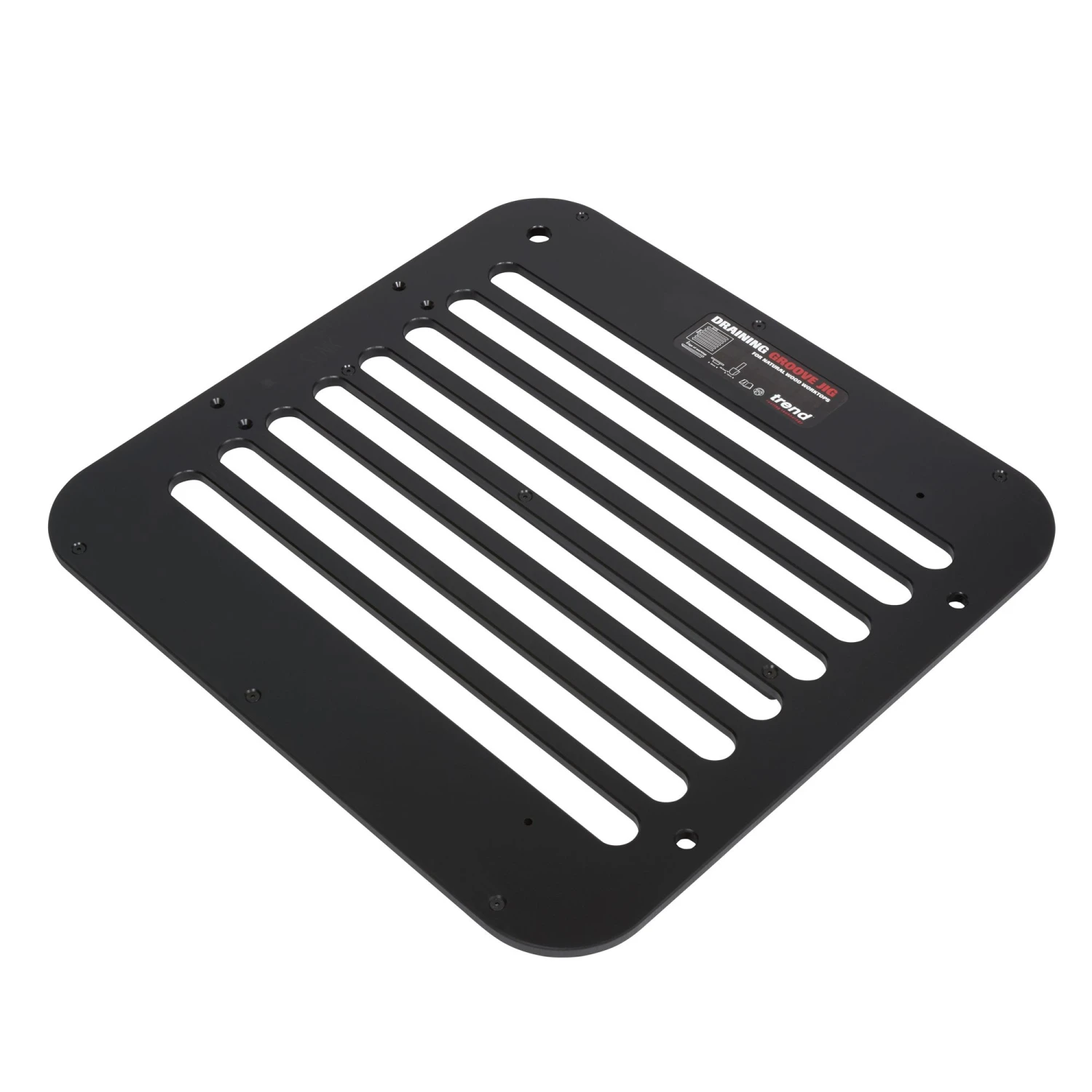

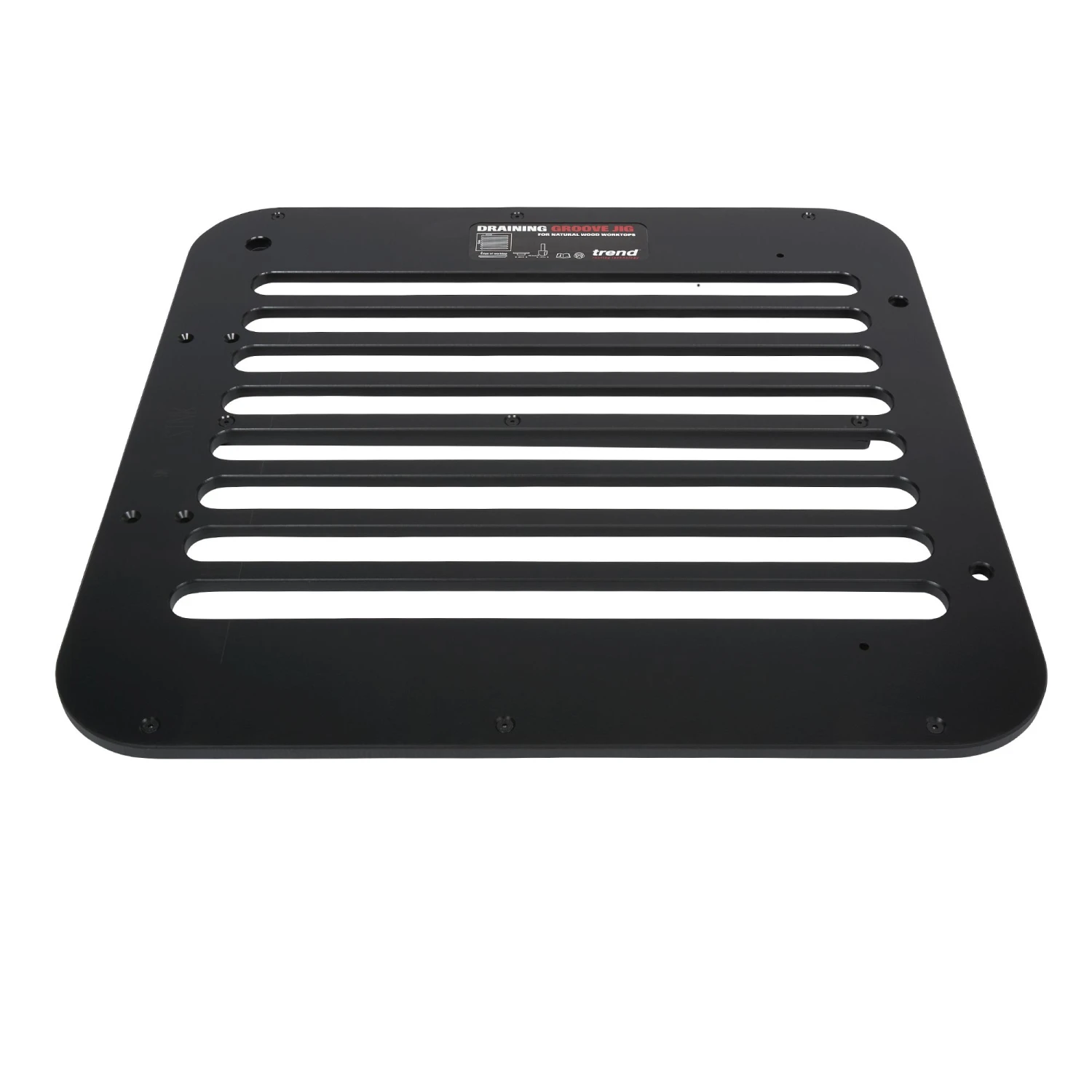

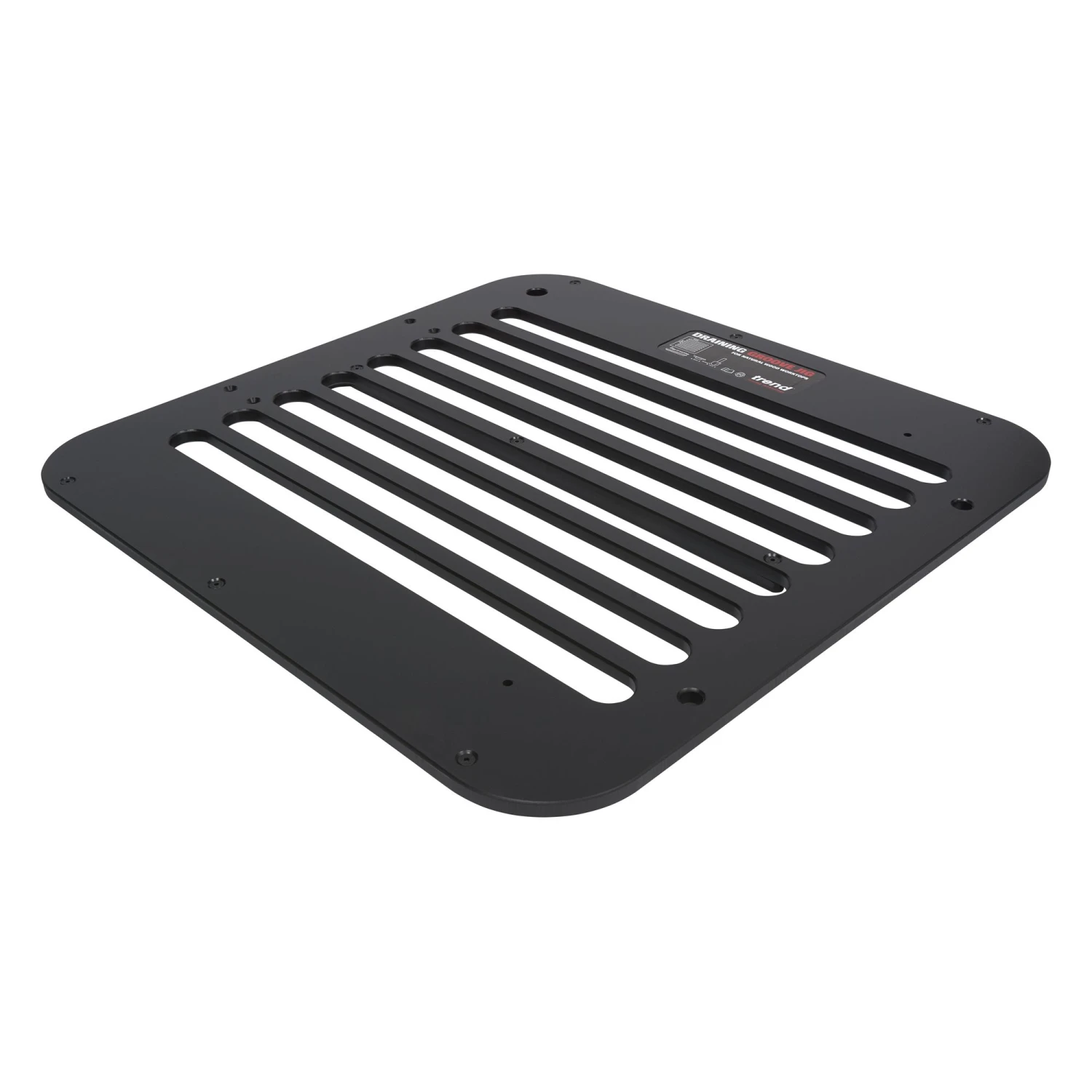

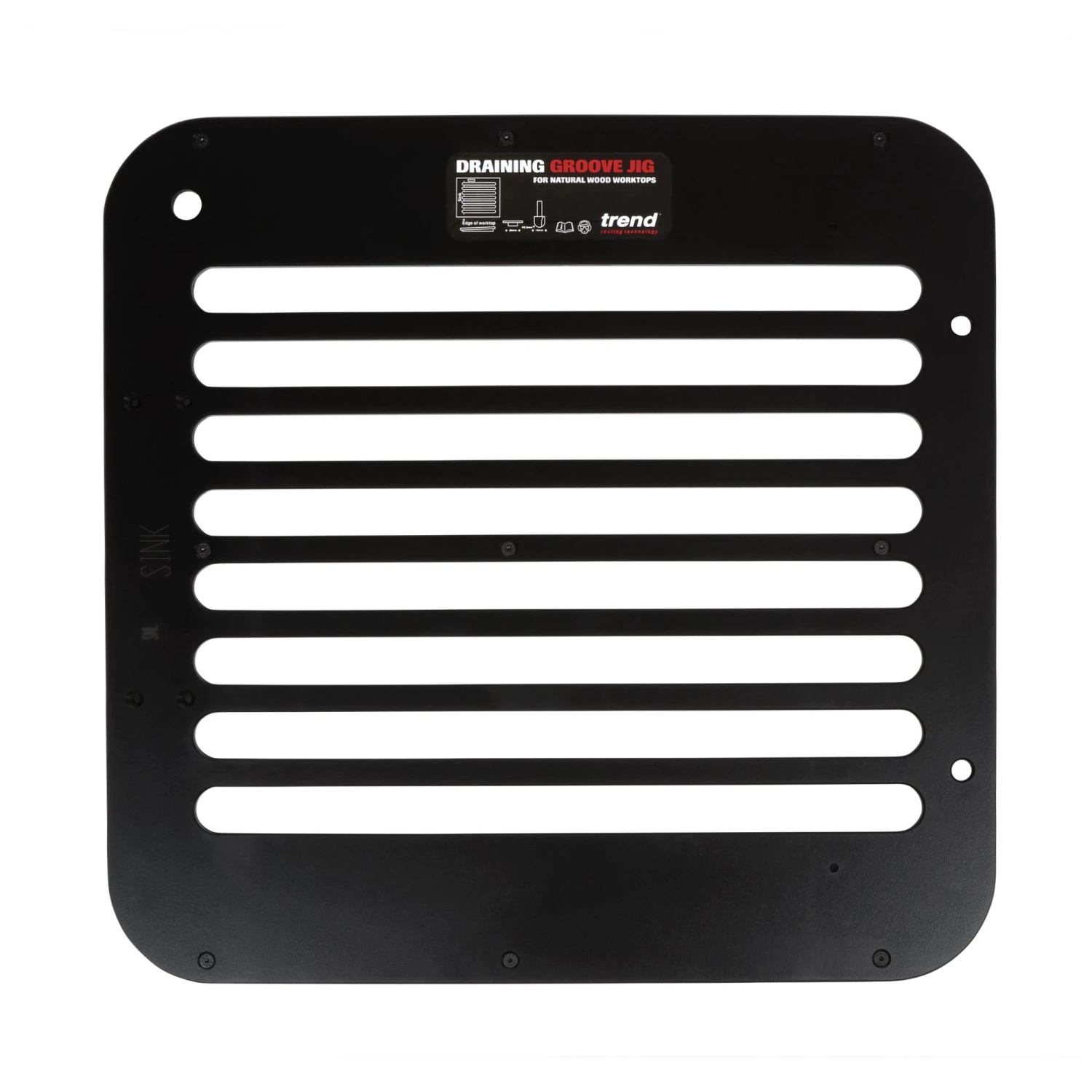

DG/JIG – Drainer Groove Jig

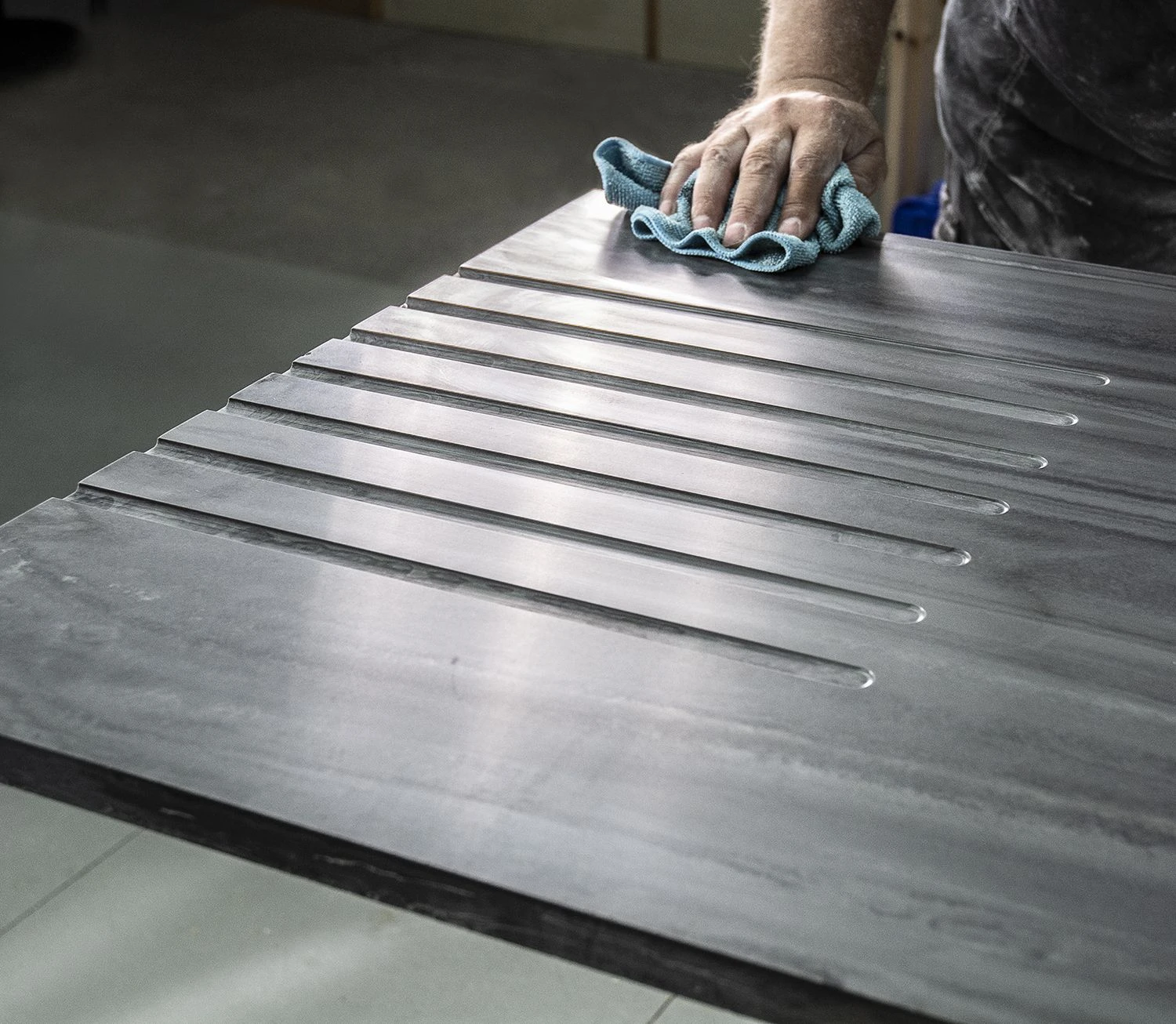

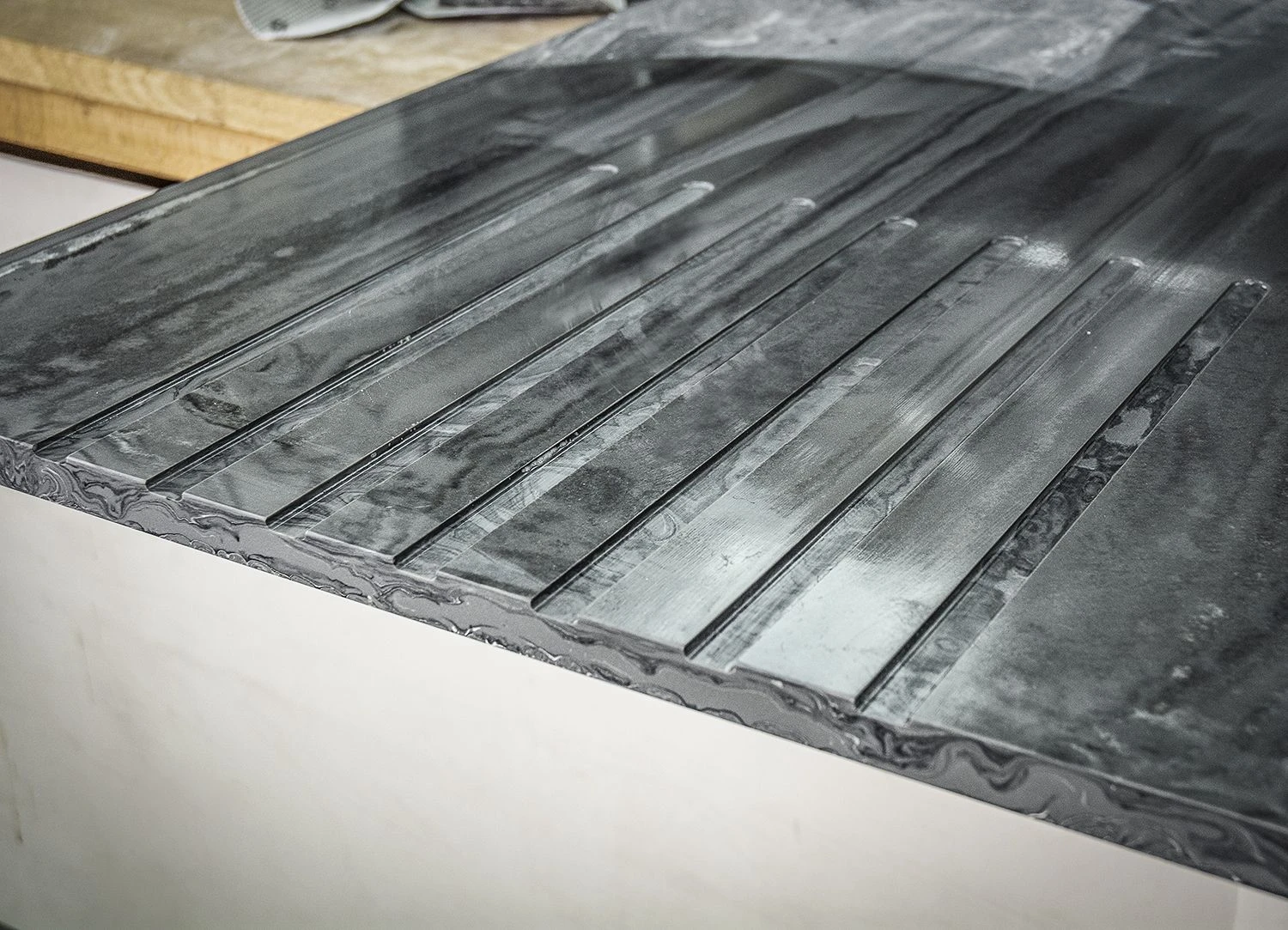

A precision jig for routing draining grooves in solid timber and compact laminate worktops when installing Belfast, farmhouse, and undermount sinks.

• CNC-Machined Compact Grade HPL provides precision, strength and durability.

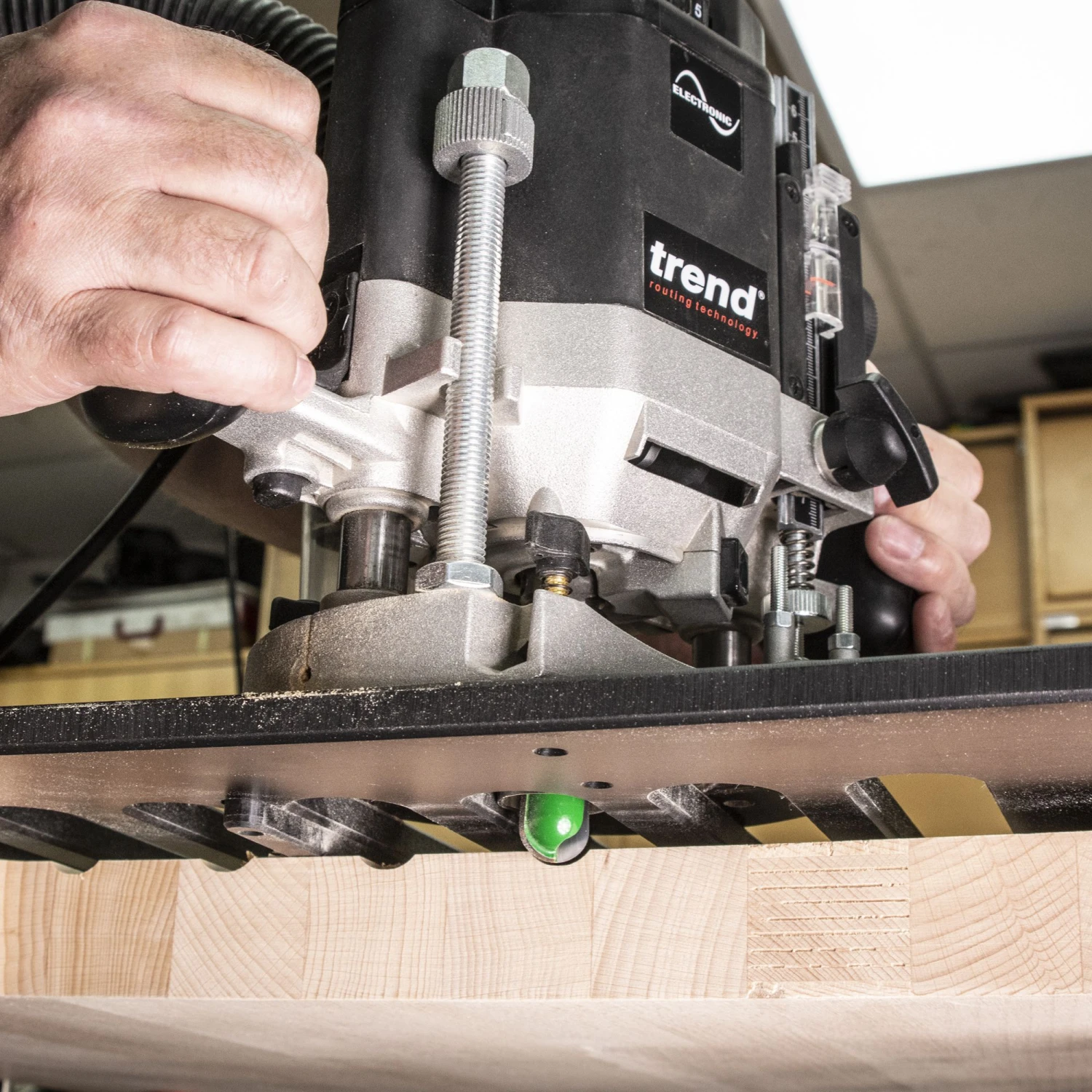

• 3 Support Runners to minimise jig deflection and maximise router support.
• 8 Drainer Grooves at 50mm pitch and 455mm long.
• Etched Sight Lines for quick setup.
• In-Built 0.5° Fall to minimize setup time and remove the need for spacers.
• Edge Guide Fixing Holes to accommodate user-made edge guides for repetitive installations.

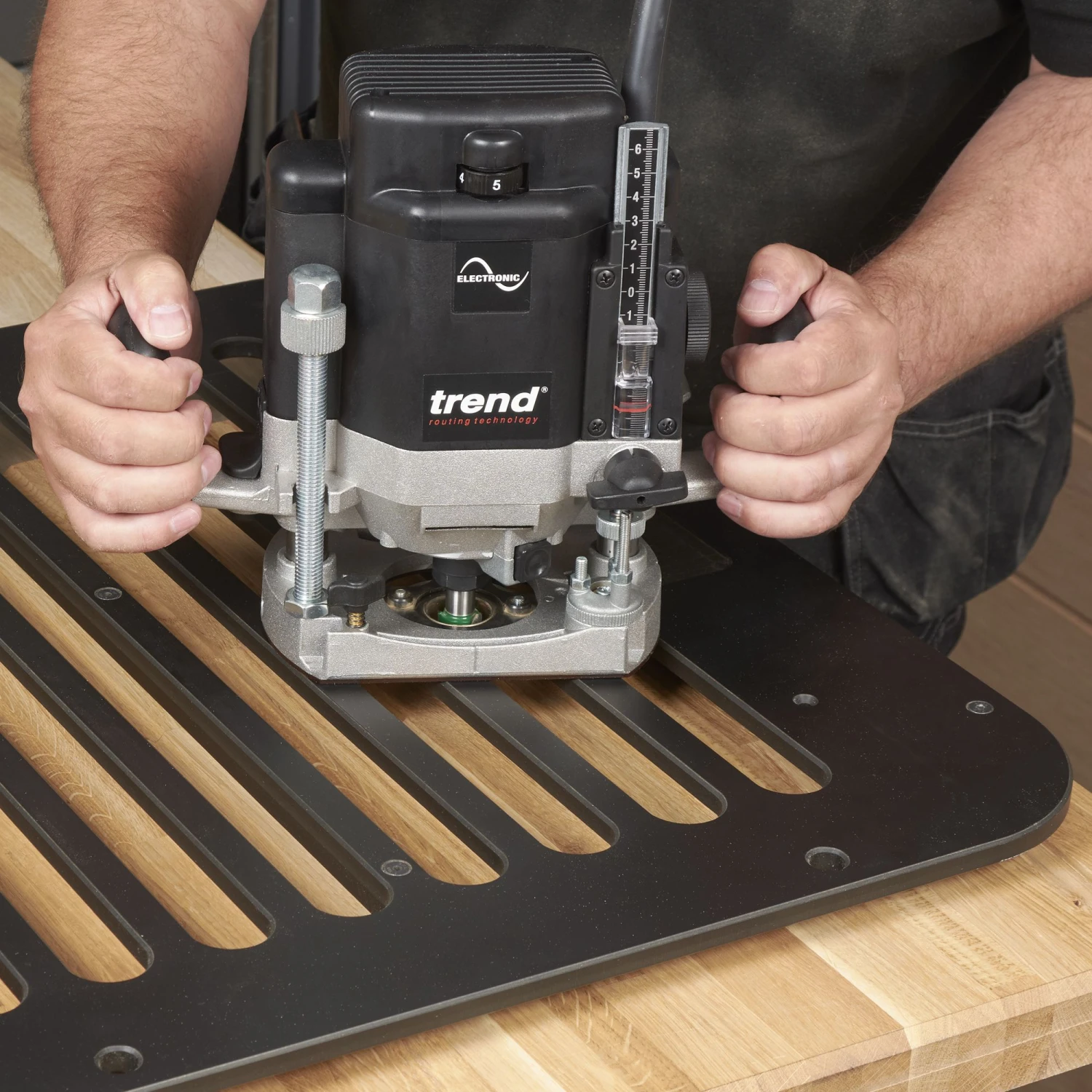

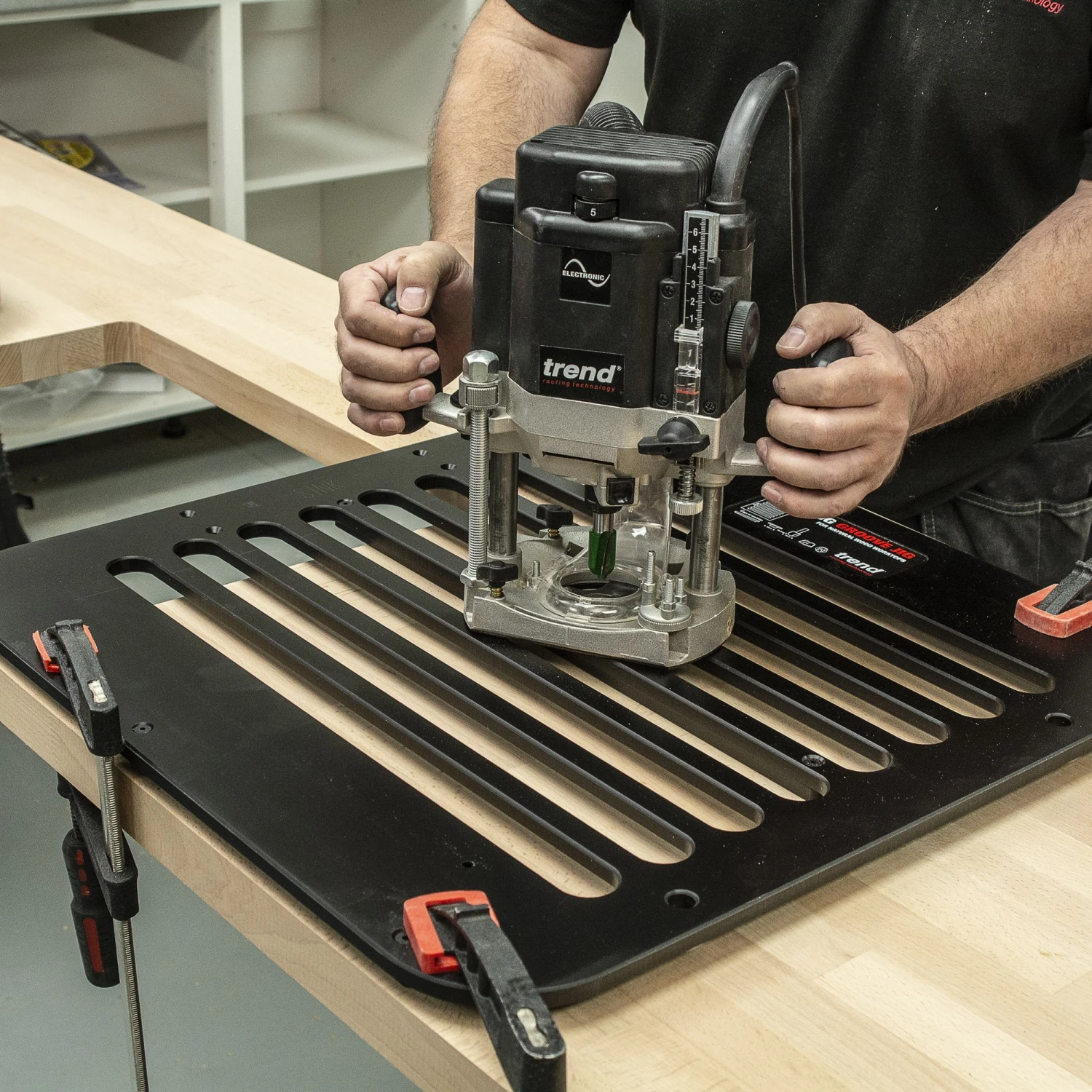

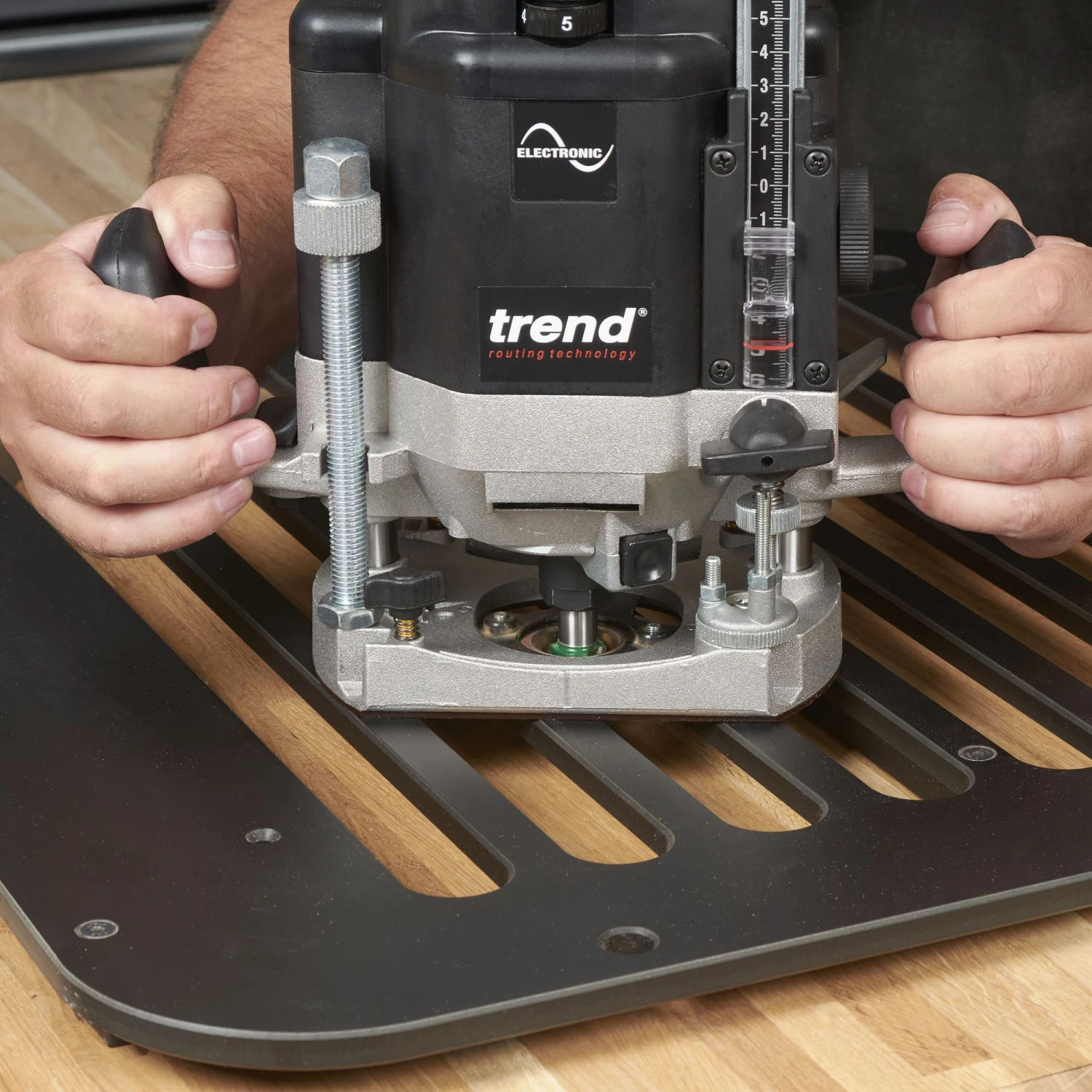

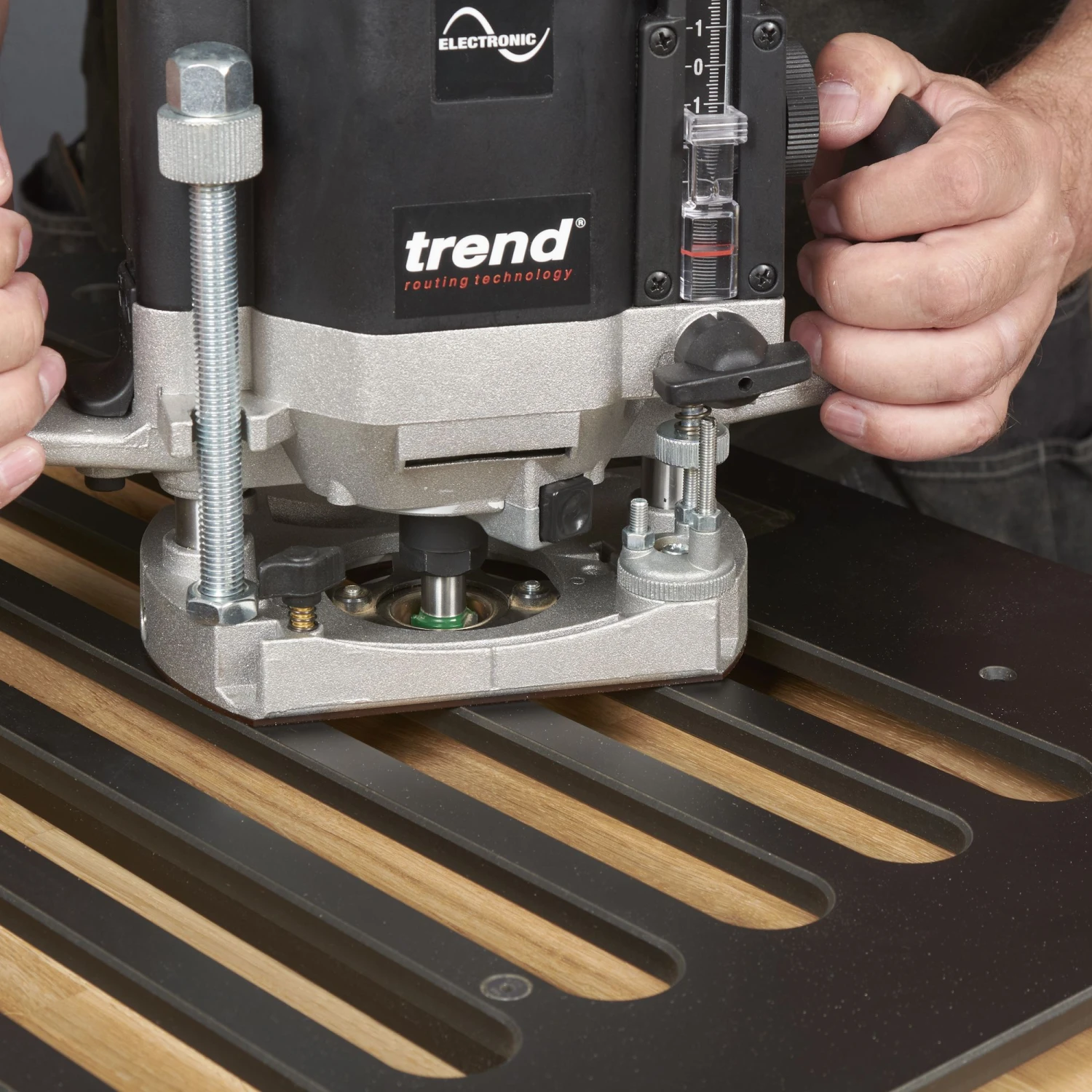

• Requires: ½” router (min.1300W), cutter and 2 x F-Clamps.

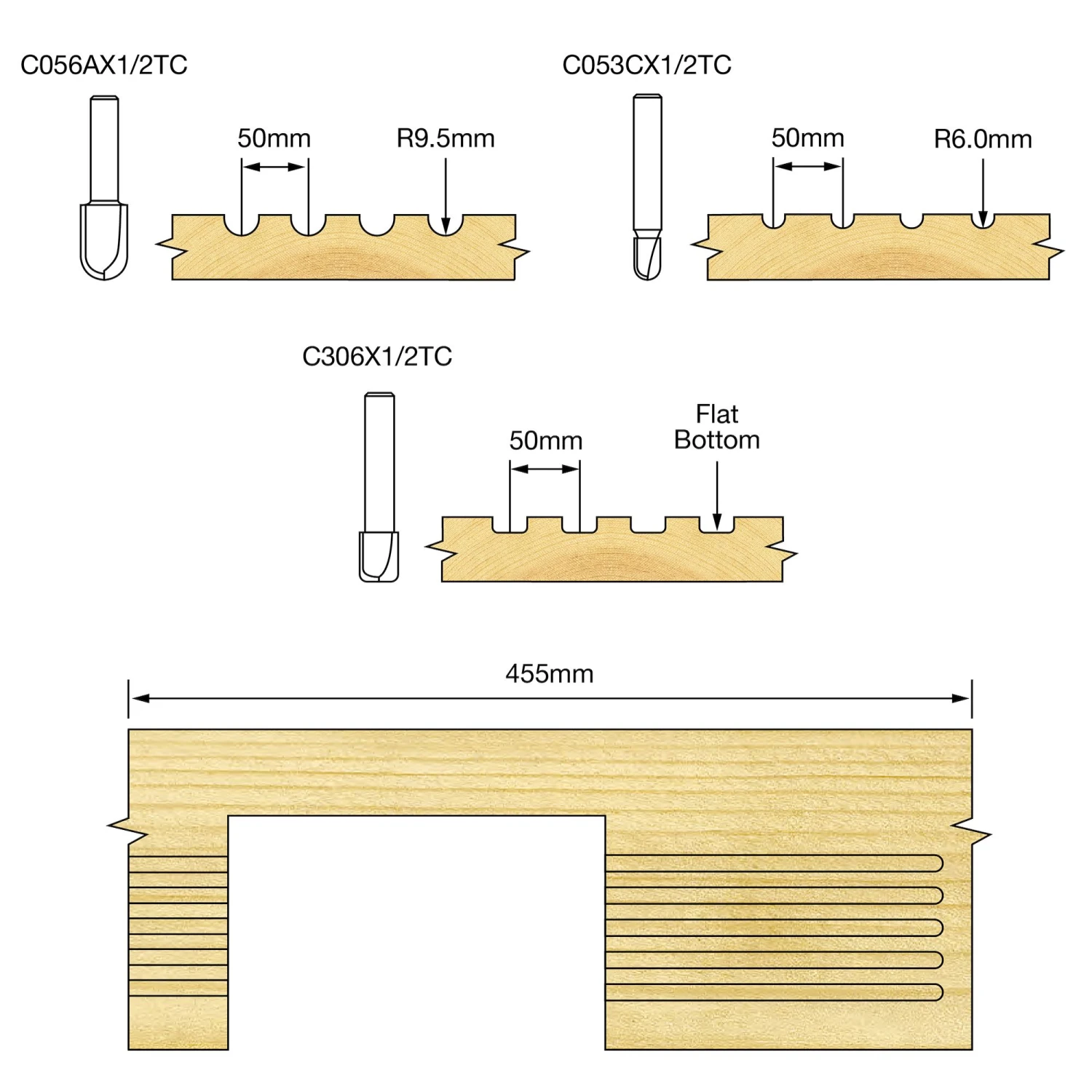

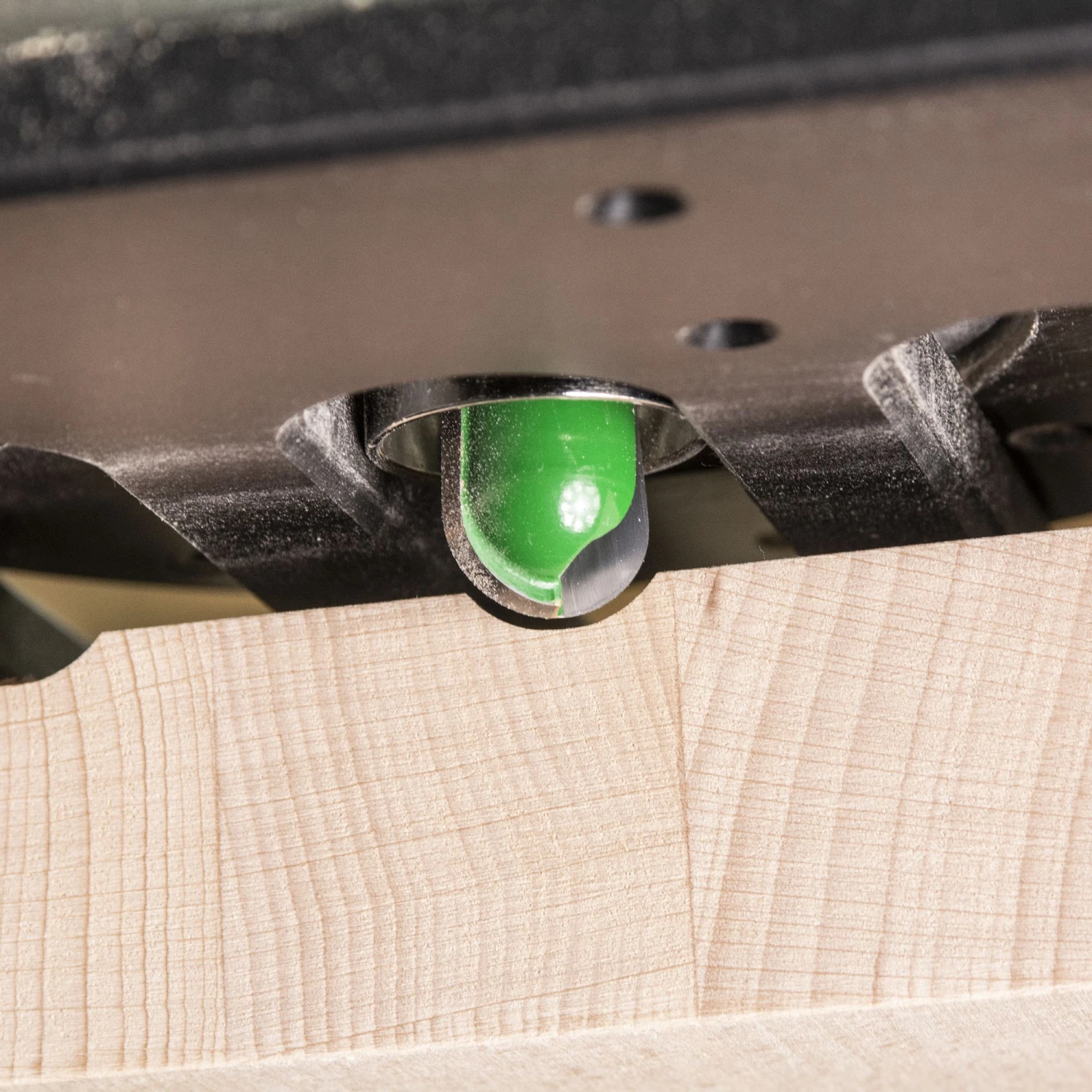

• Cutter options: C056AX1/2TC (9.5mm radius), C053CX1/2TC (6.0mm radius), C306X1/2TC (flat bottom).
