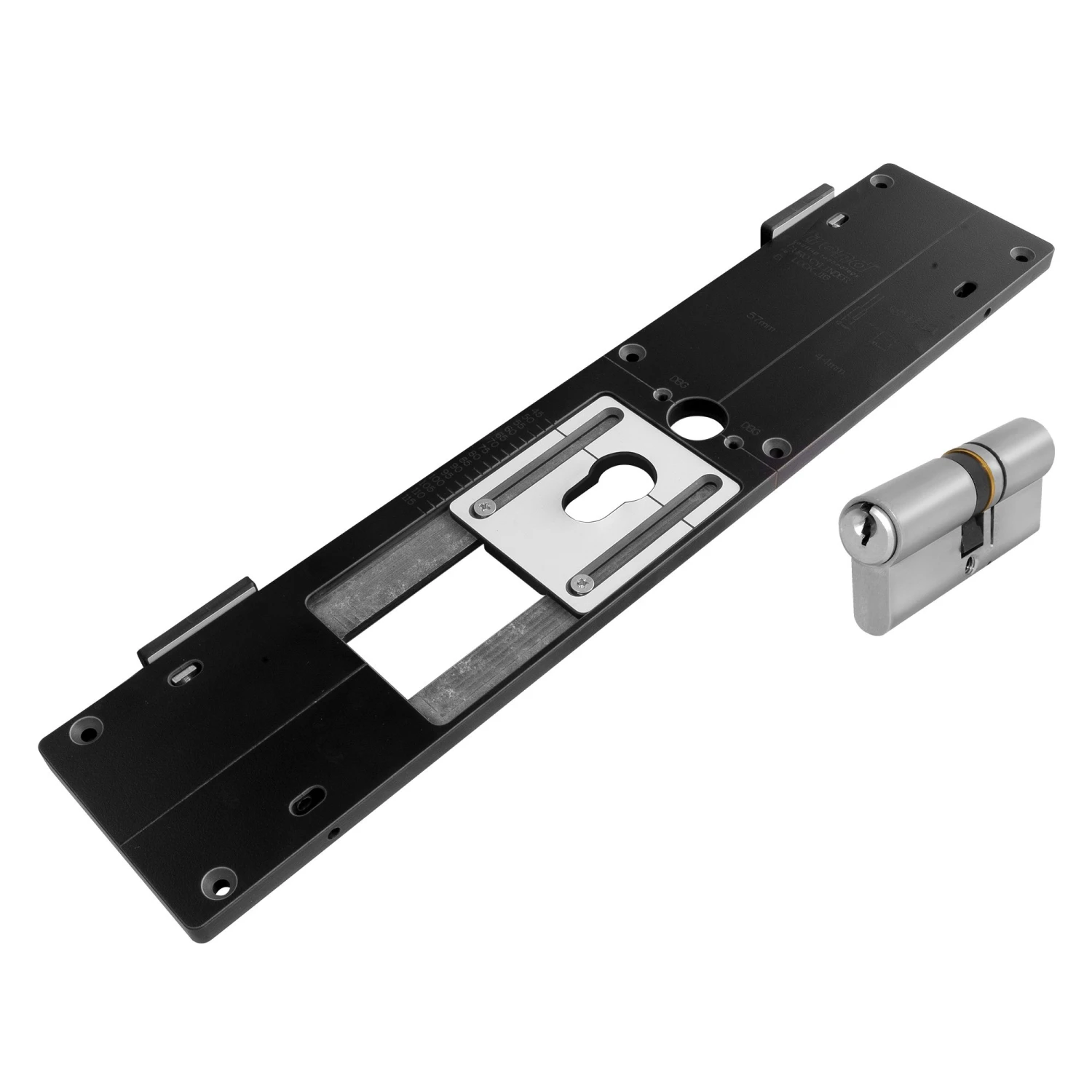

ECL/JIG – Trend Euro Cylinder Lock Jig – Fast, Adjustable Jig For Euro Cylinder Lock Barrels And Spindles.

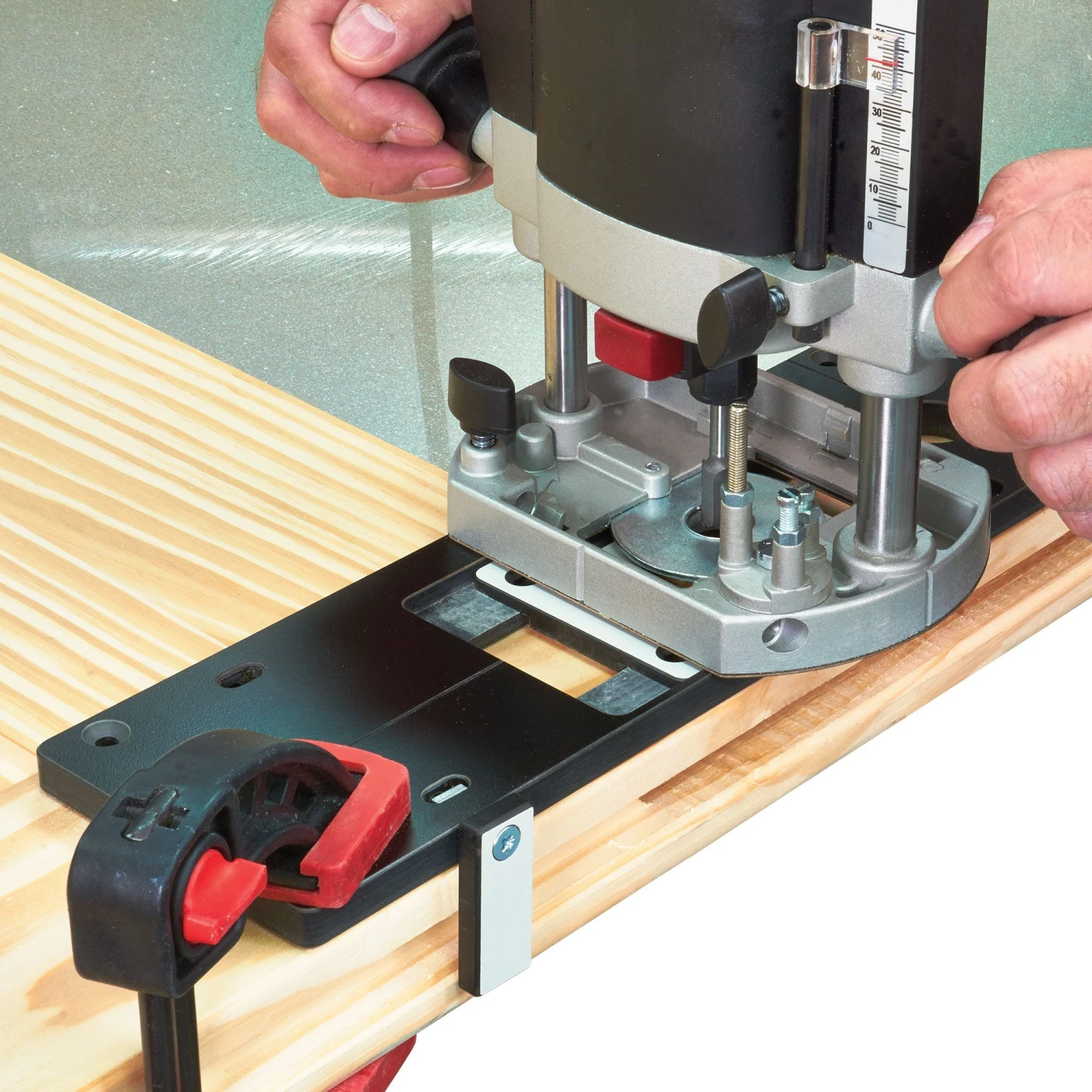

A quick and easy routing jig to cut hole for Euro Cylinder Lock barrels.

• Routs out recess to suit Euro lock cylinder barrel size 33mm x 17mm/10mm.
• Sliding plate allows handle pitch to lock body adjustment from 45mm to 115mm.
• 44mm and 57mm backset.
• Jig is designed to give a 1mm clearance around the barrel.
• Allows 16mm diameter hole for handle spindle to be routed.
• Holes for use with 2.75mm diameter Trend Snappy drill bit guide for marking handle lock plate at 40mm centres.
• Made from 12mm thick High Pressure Laminate for longer life.
• Long rotating edge stops for use with 44mm doors with leading edge.
• Reversible design.
• Includes spacer pack to allow for slightly deeper backset
• Accessory sliding plates available for small oval and large oval cylinder locks.
• Requires plunge router, 12mm diameter cutter and 20mm diameter guide bush.

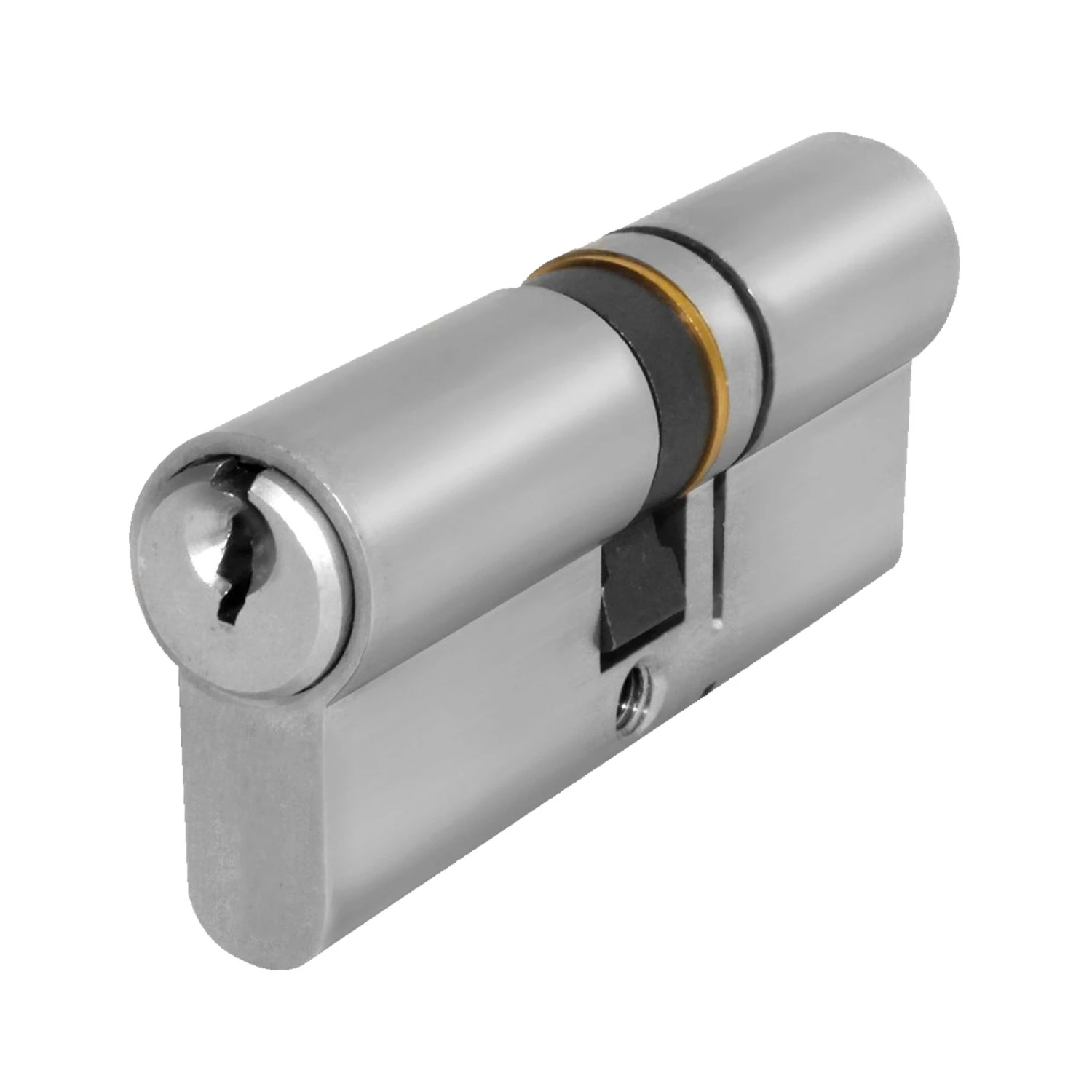

• Cylinder not included.
