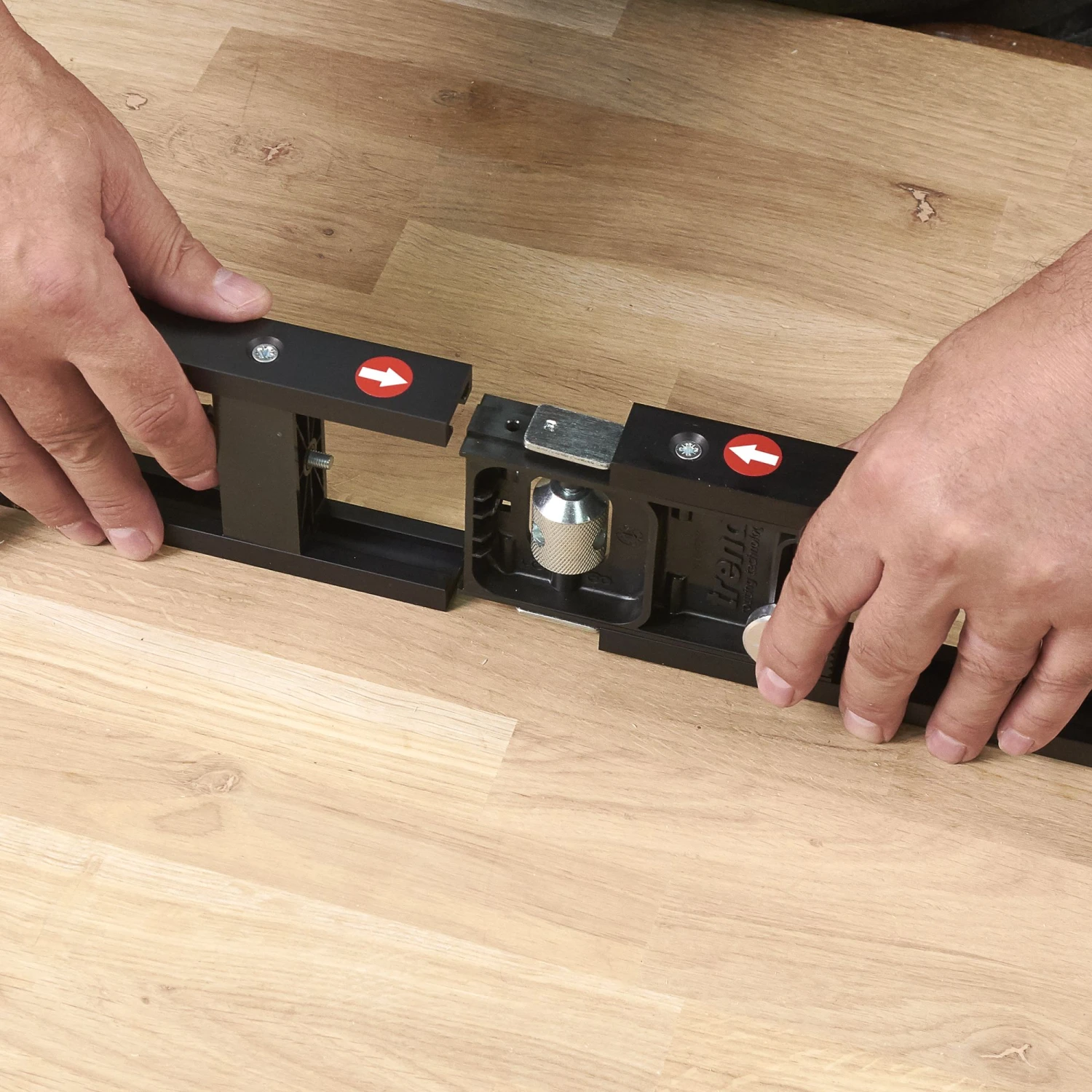

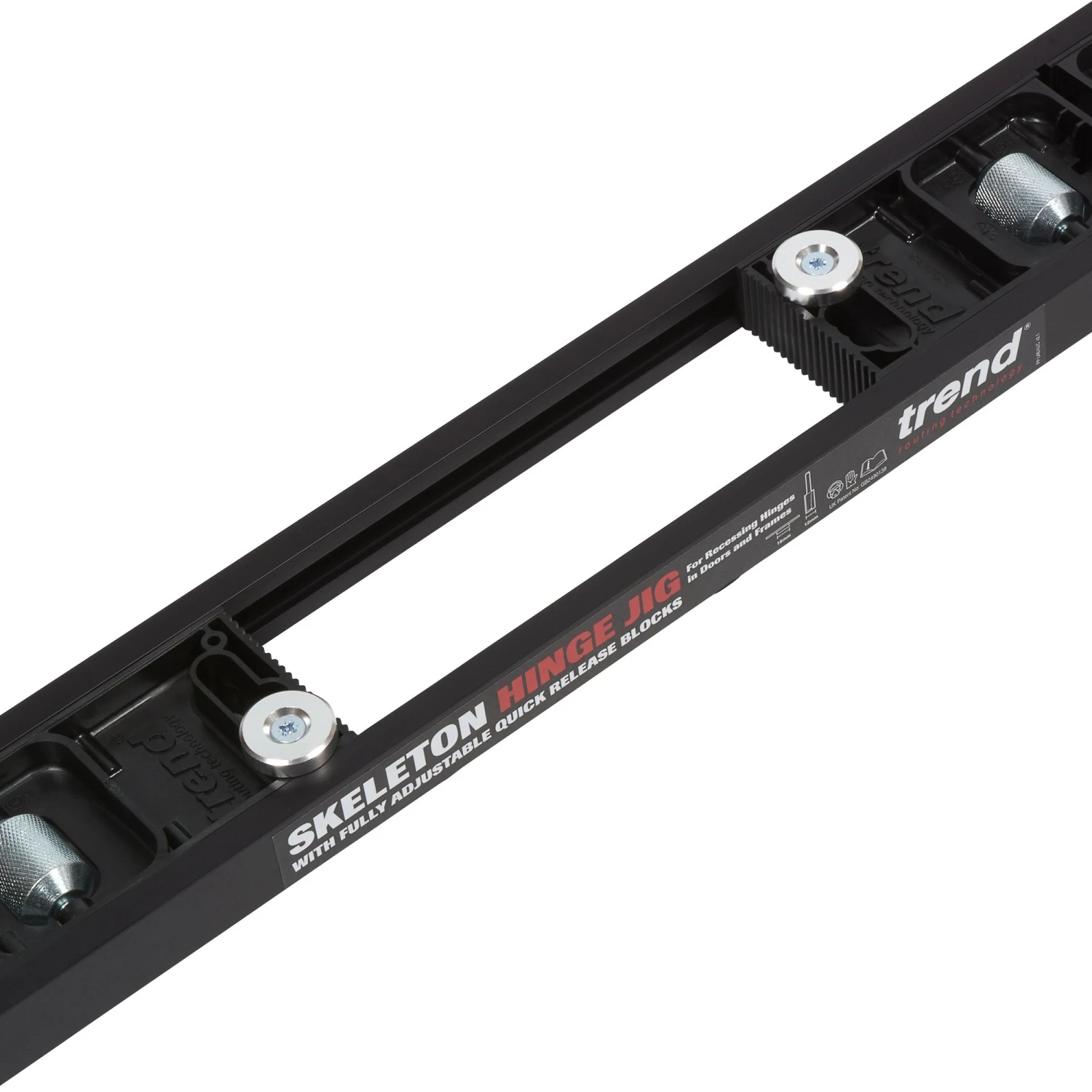

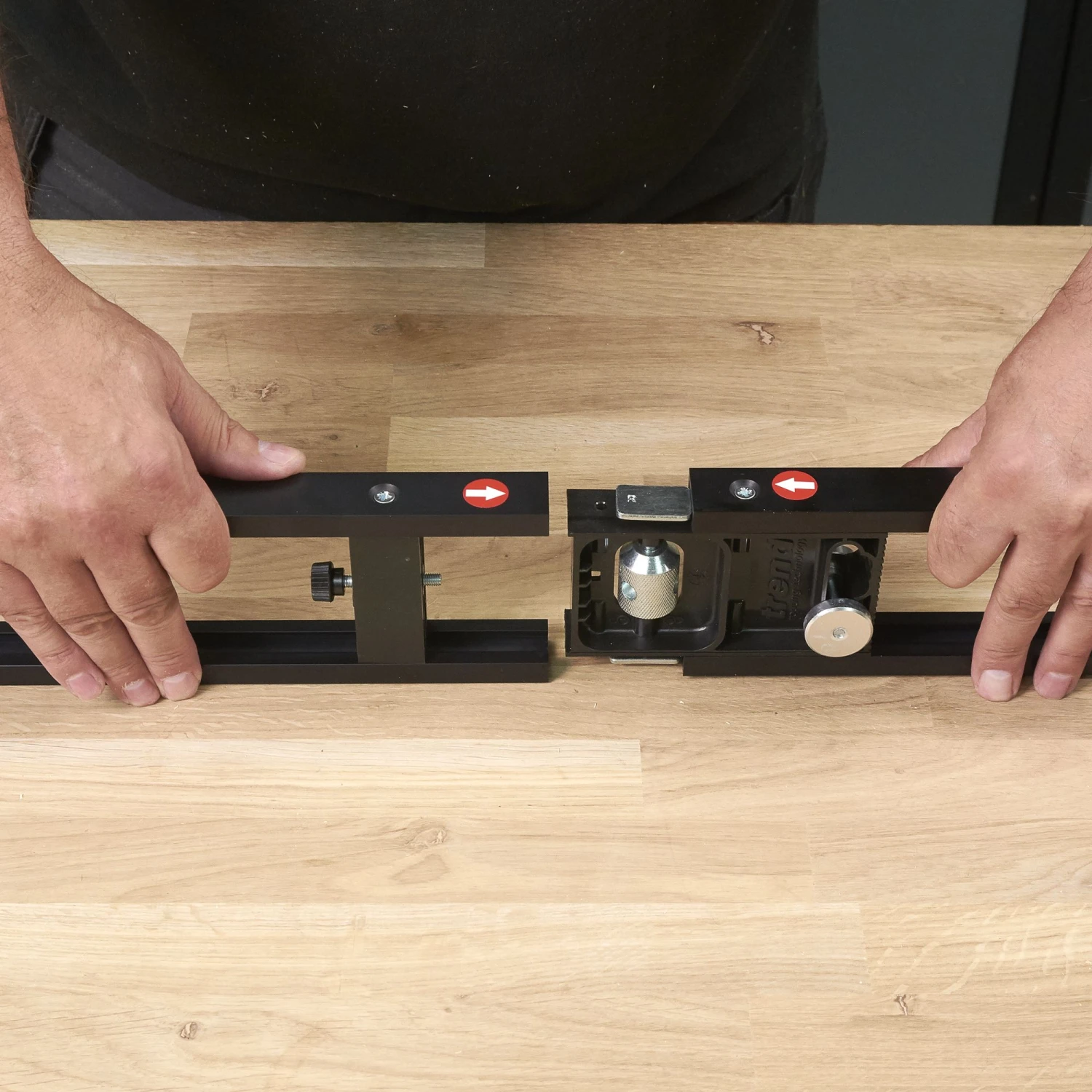

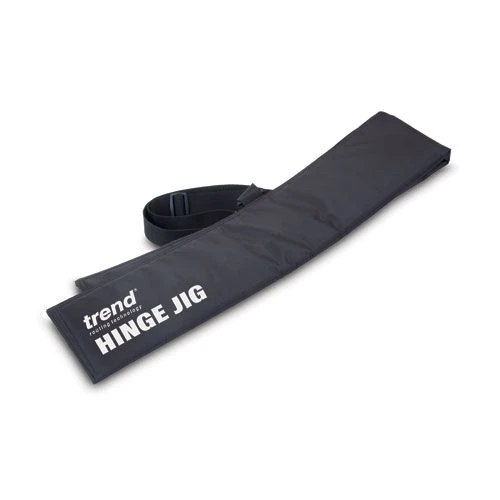

H/JIG/C – Hinge Jig Skeleton Two Part In Case

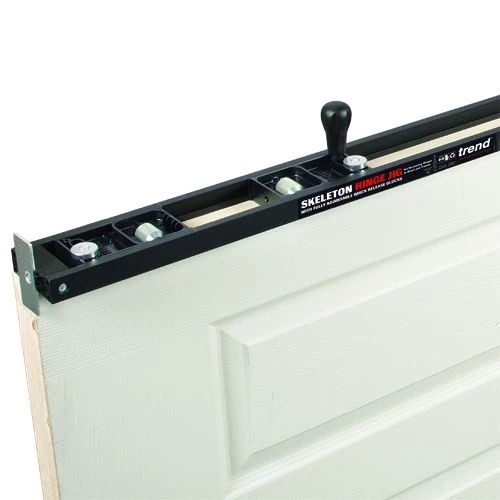

The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.

• It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.

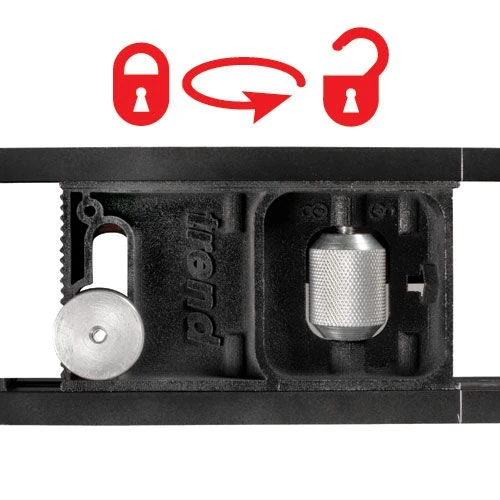

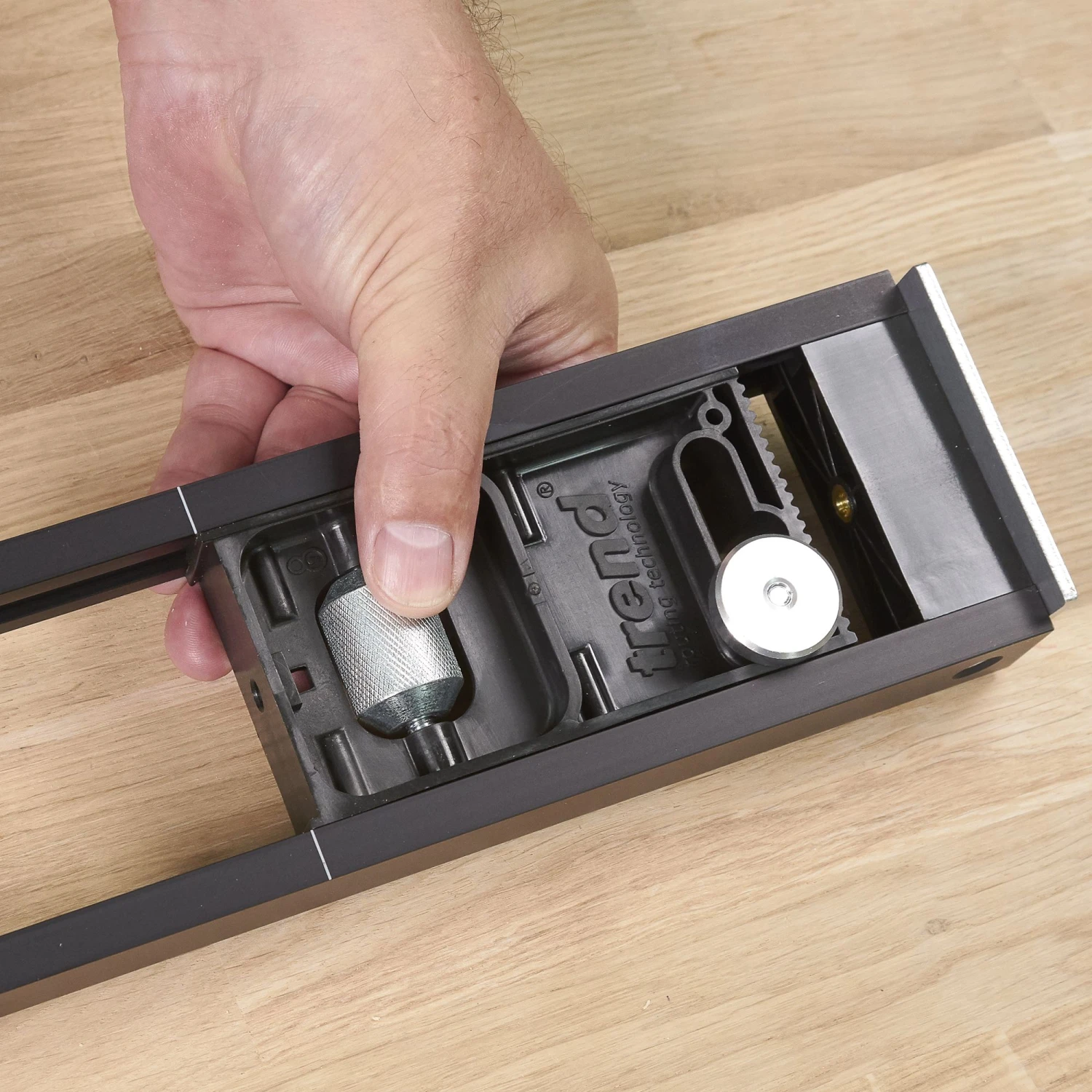

• Fully adjustable apertures for fire door requirements and renovation work.
• Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.
• Ideal for fitting a new door in an old frame.
• No need for marking out in the conventional way.

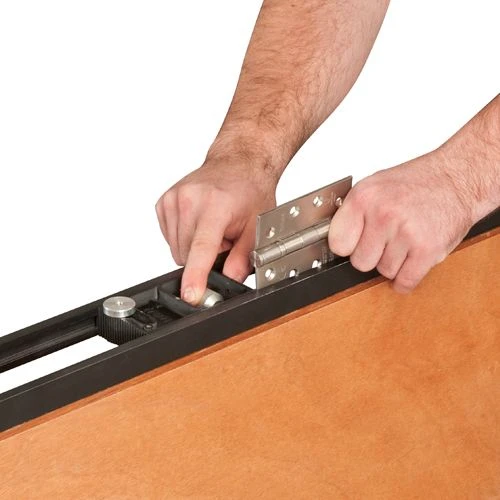

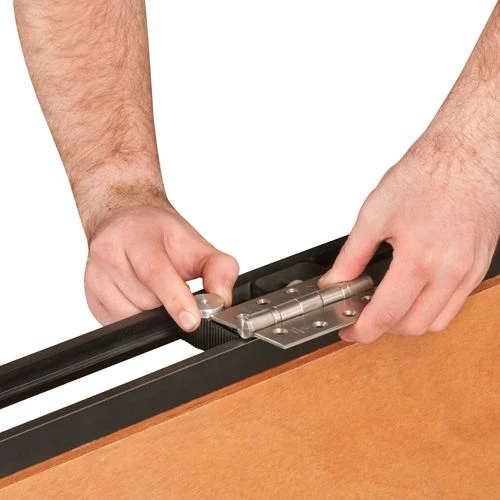

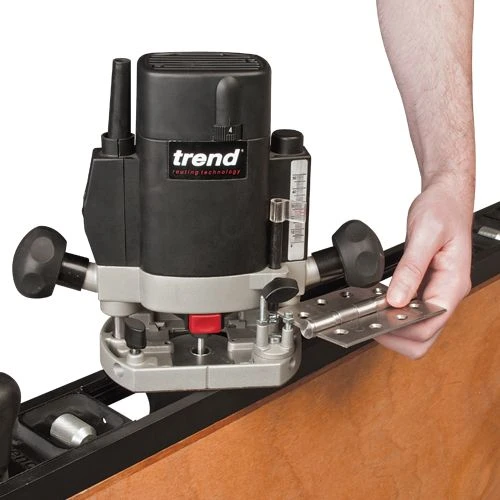

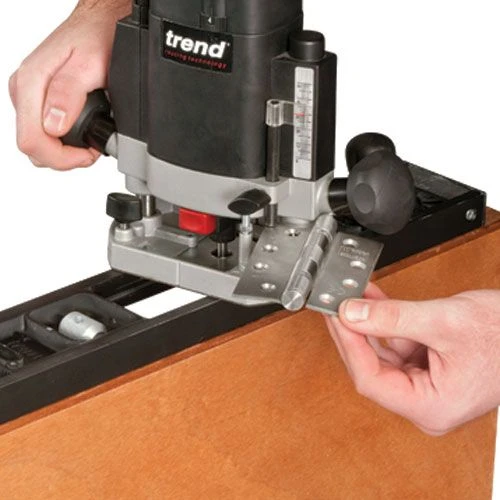

• Quick & simple to set-up as the hinge is used as the pattern.

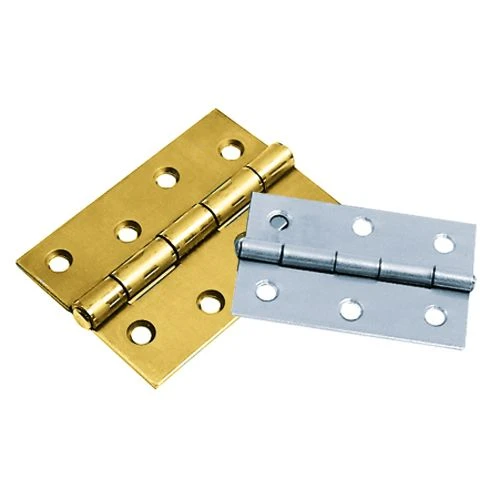

• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.

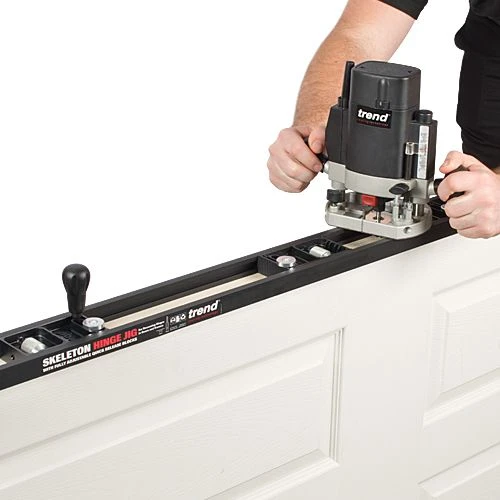

• Use with a light duty plunge router with 1/4 inch collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.

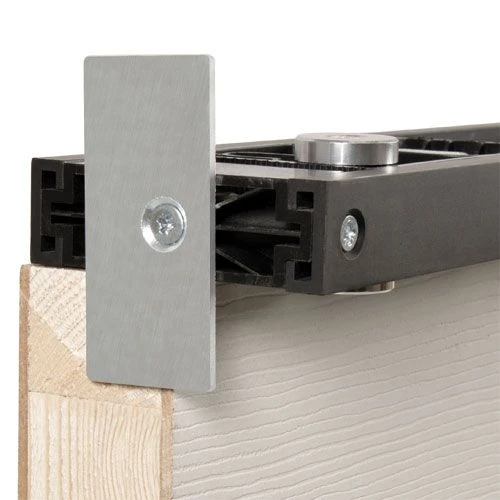

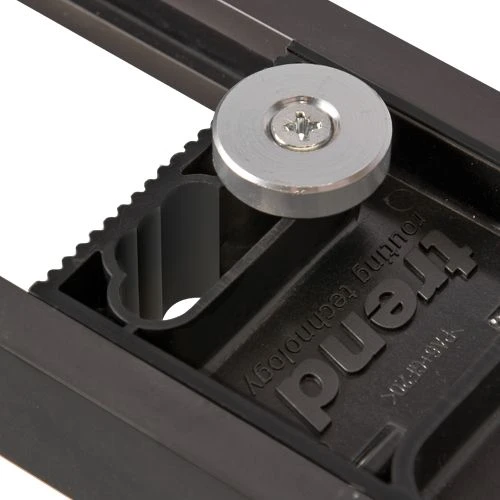

• Adjustable edge guides with preset for hinge of 20mm, 25mm and 30mm
• Unibase may be needed.
• Patent No. GB2490139
• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
