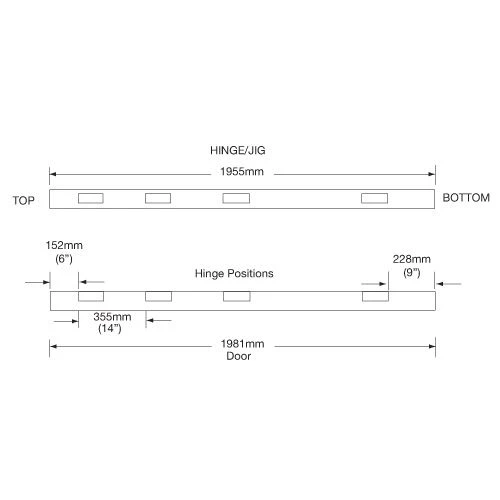

HINGE/JIG – Hinge Recessing Jig Single Piece

The single piece Contractor Hinge Jig is designed for recessing hinges in wooden doors & frames with a plunge router.

• It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
• Used on-site & in joinery shops to increase productivity with excellent results.
• Four apertures for fire door requirements.
• No need for marking out in the conventional way.

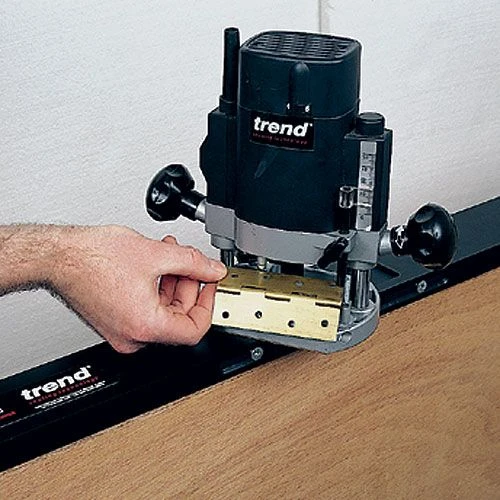

• Quick & simple to set-up as the hinge is used as the pattern.
• Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
• Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.

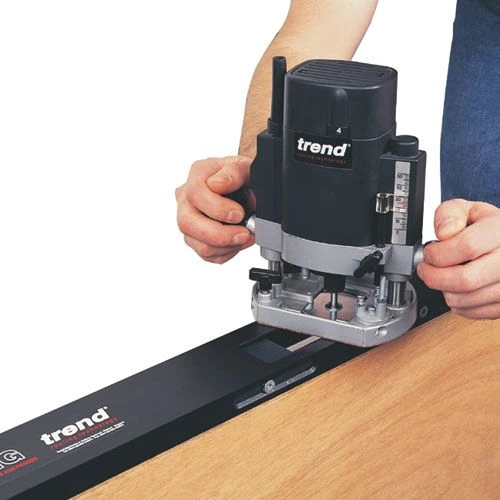

• Use with a light duty plunge router with 1/4 inch collet.
• Long reach router cutter required, 12mm diameter with 70mm overall length.
• Angled position slots to prevent creep.
• Unibase may be needed.

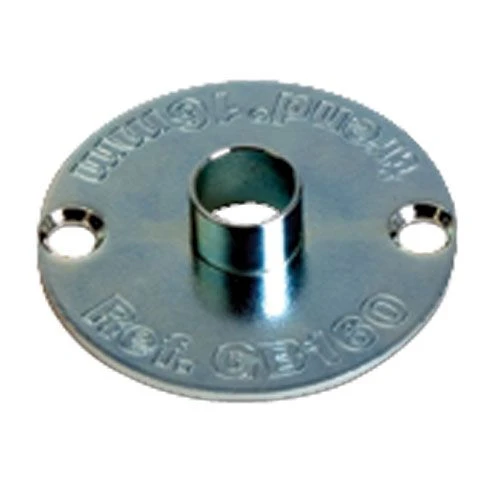

• T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.
