LOCK/JIG/A – Lock Jig Large

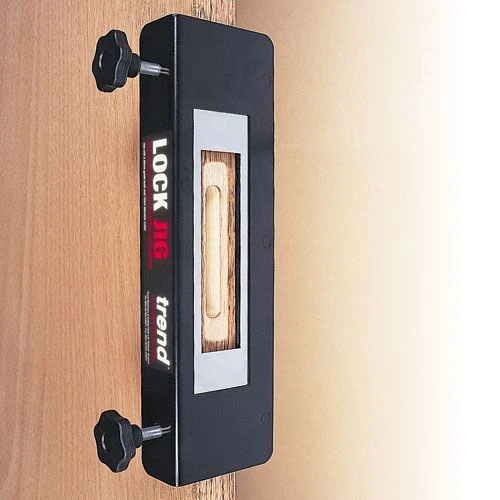

Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate for larger locks quickly & accurately.

• Suitable for DDA (Disabilty Discrimination Act) lock size.

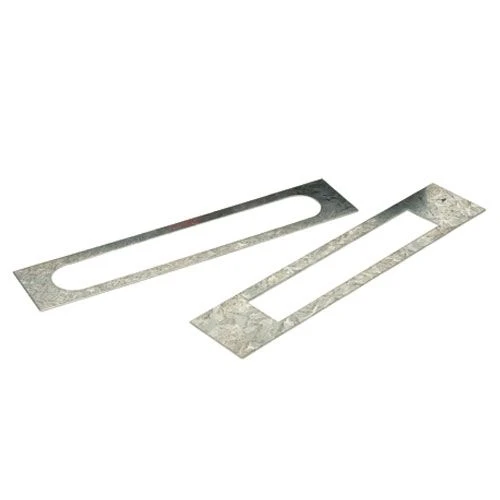

• 20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise.

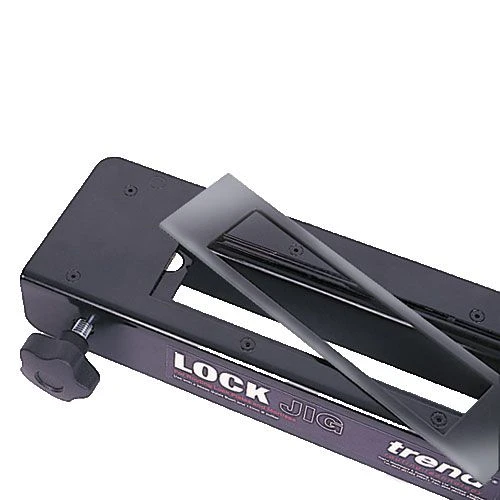

• Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).
• Suitable for doors 34mm to 58mm thick.
• An auger bit and drill is required to complete deep mortises.

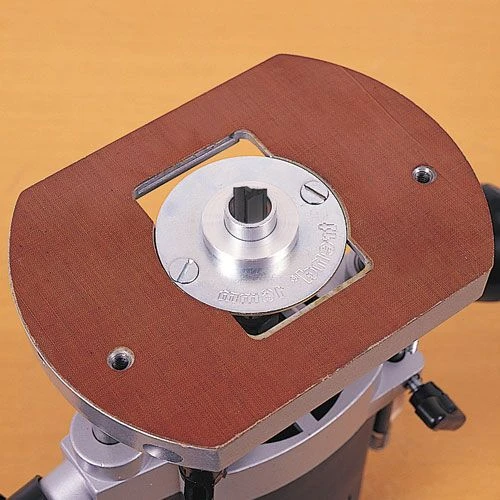

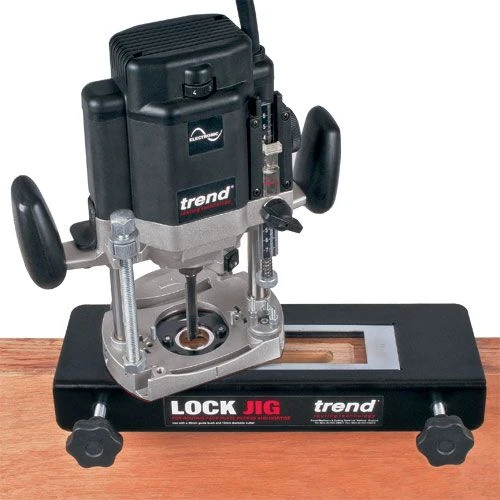

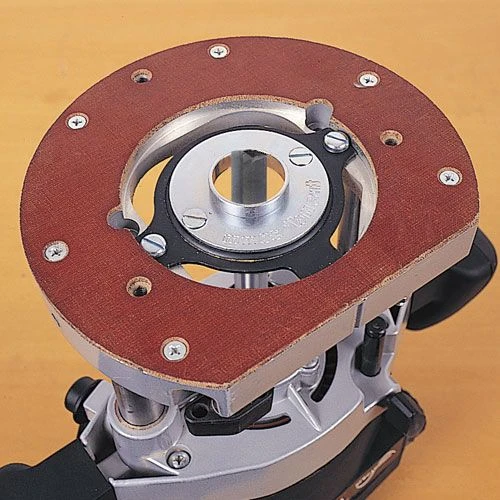

• The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.
• Suits DIN style locks.
