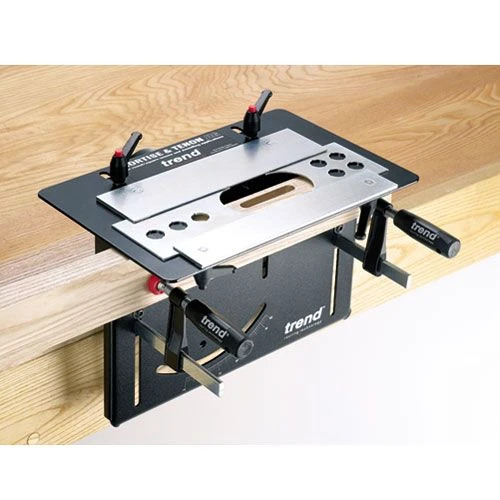

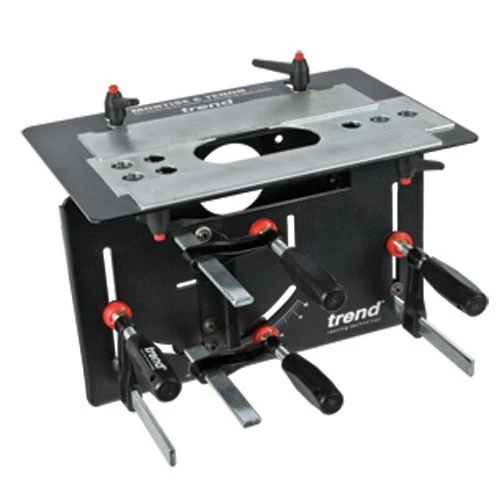

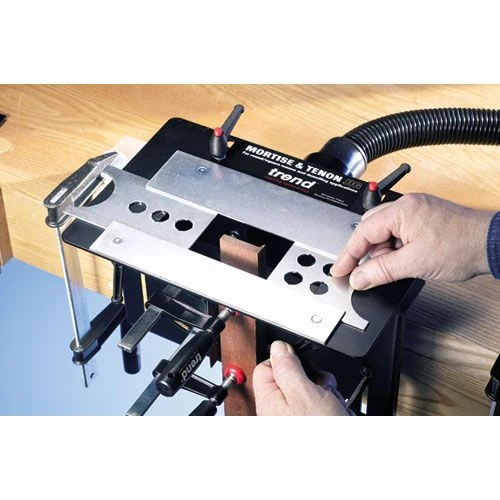

MT/JIG/EURO – Mortise And Tenon Jig Euro (Metric Size)

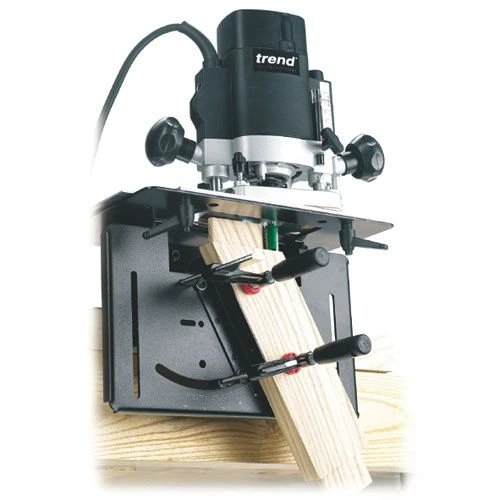

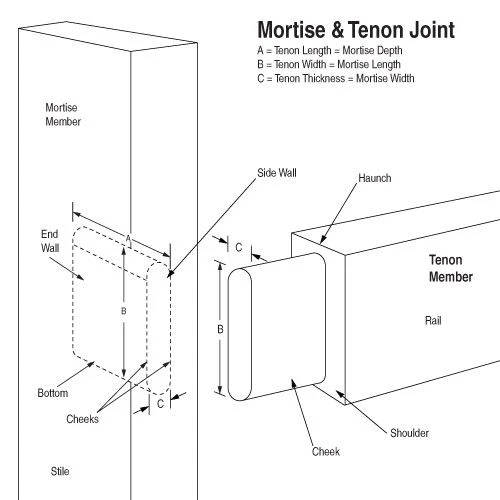

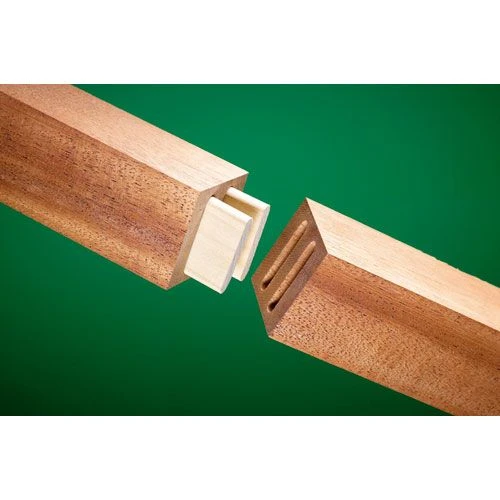

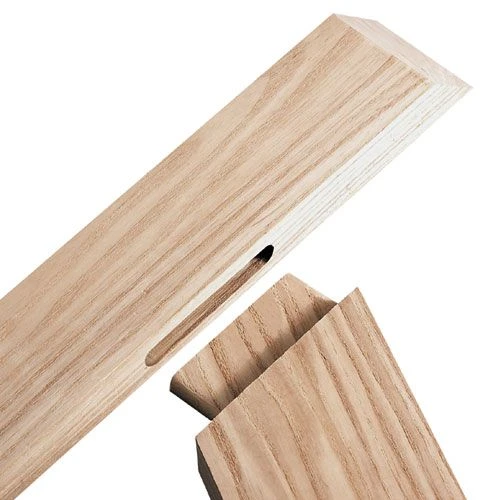

Enables mortise & tenons and dowel joints to be cut with a router.

• Ideal for cabinet, chair and table.
• CNC precision manufactured plates and body.
• One set-up for both mortise and tenon giving perfectly fitting joints.

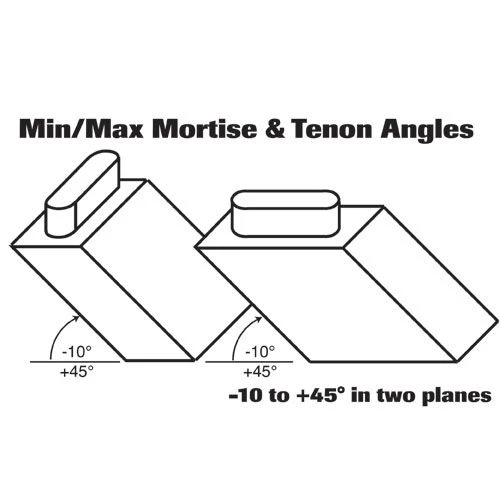

• Fully adjustable for compound angle joints up to 45 degree.
• Reversible templates to produce round and square end tenons.

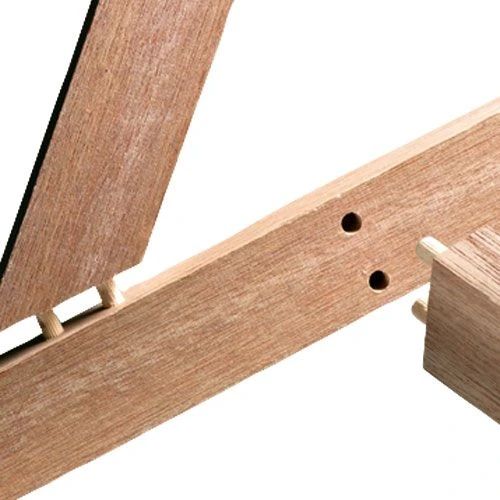

• Templates can be used for accurate dowelling applications.

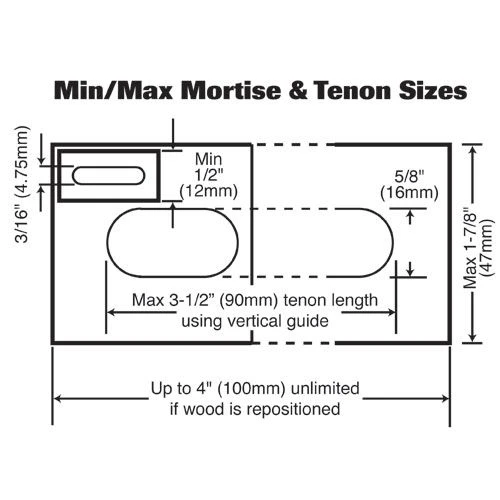

• Cuts mortise & tenon sizes of 6mm to 16mm.
• Guide bushes are included but cutters are required.
• A Unibase may be required for certain makes & models of router.

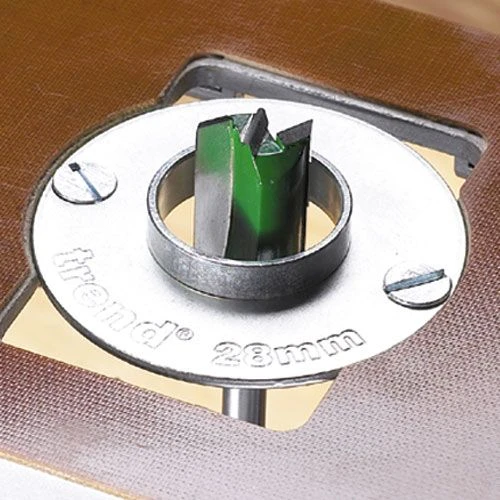

• All tenons are cut with a 16mm diameter straight cutter (Ref. C025B).

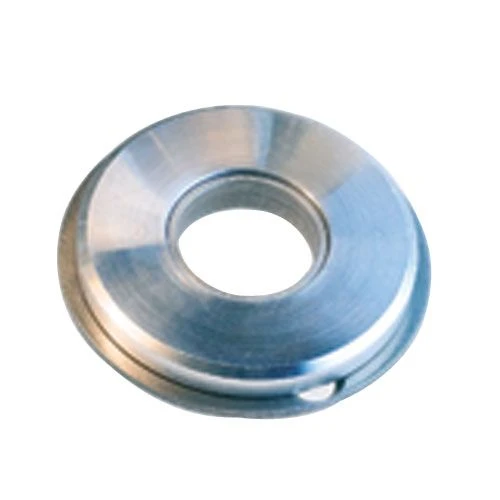

• The width of the tenon is adjusted by using different guide bush diameters.
• International PCT Appl No. PCT/GB02/00253.
• Jig requires:
• A portable plunge router with 8 mm shank capacity.
