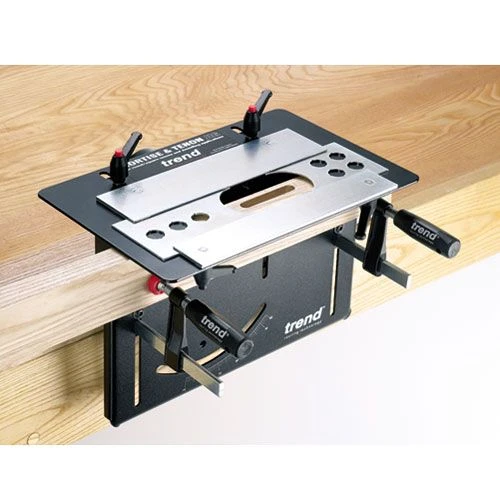

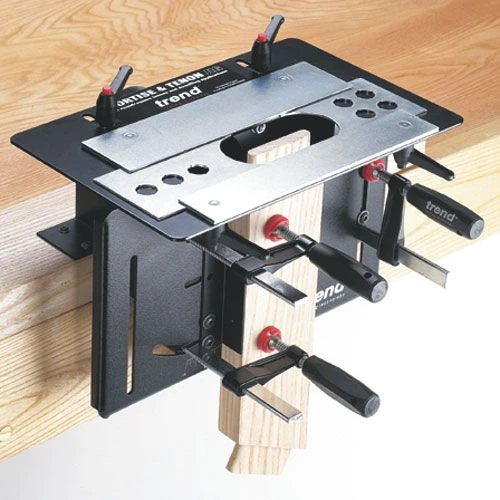

MT/JIG – Mortise And Tenon Jig (Imperial Size)

Enables mortise & tenons and dowel joints to be cut with a router.

• Ideal for cabinet, chair and table.
• CNC precision manufactured plates and body.
• One set-up for both mortise and tenon giving perfectly fitting joints.

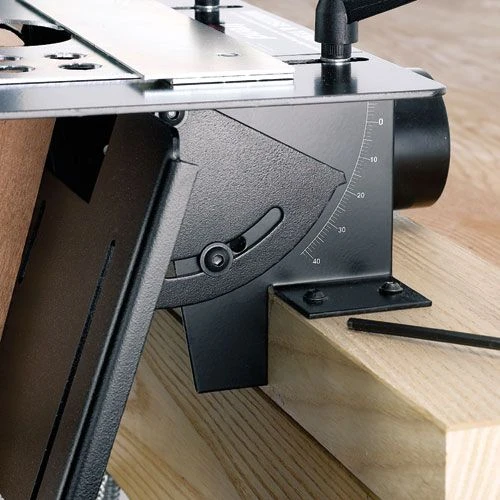

• Fully adjustable for compound angle joints up to 45 degree.

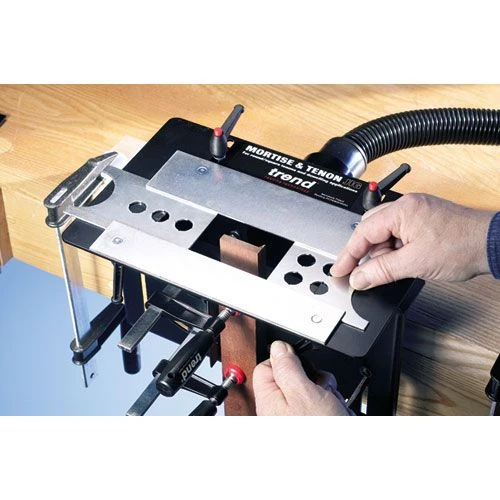

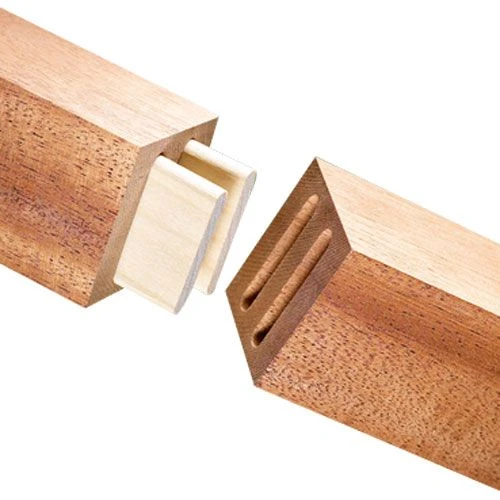

• Reversible templates to produce round and square end tenons.

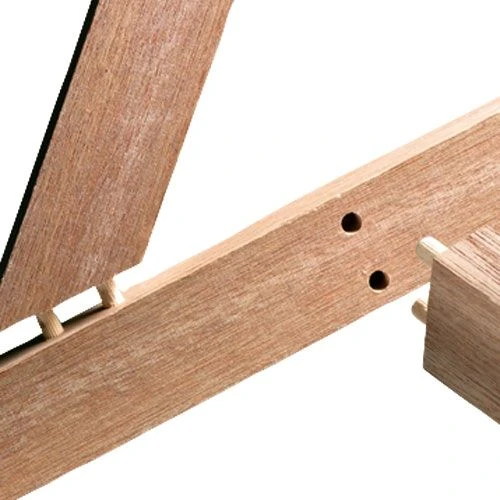

• Templates can be used for accurate dowelling applications.

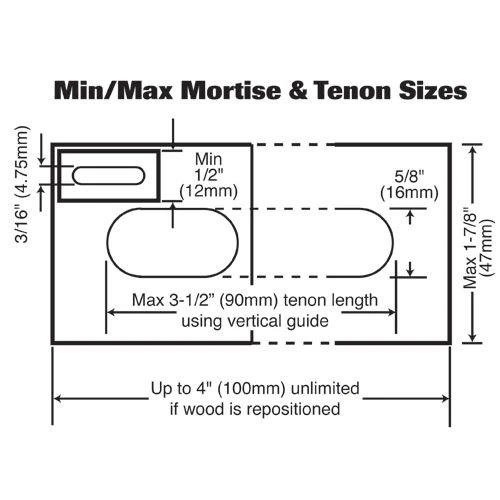

• Cuts mortise & tenon sizes of 1/4 inch (6.35mm) to 5/8 inch (15.9mm).
• Guide bushes are included but cutters are required.
• A Unibase may be required for certain makes & models of router.
• All tenons are cut with a 5/8 inch diameter straight cutter (Ref. C026).
• The width of the tenon is adjusted by using different guide bush diameters.
• International PCT Appl No. PCT/GB02/00253.
• Jig requires:

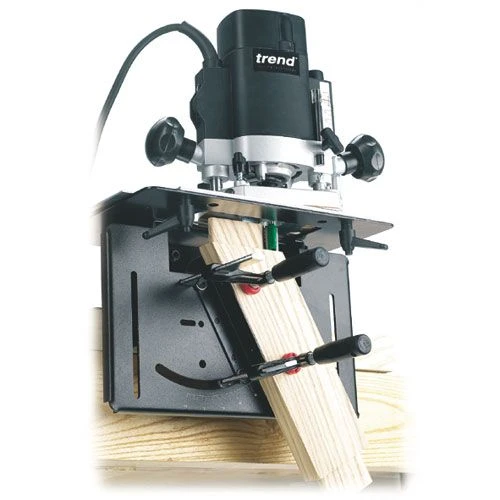

• A portable plunge router with 6.35 mm (1/4 inch) shank capacity.
