TEMP/BH/A – Template Butt Hinge

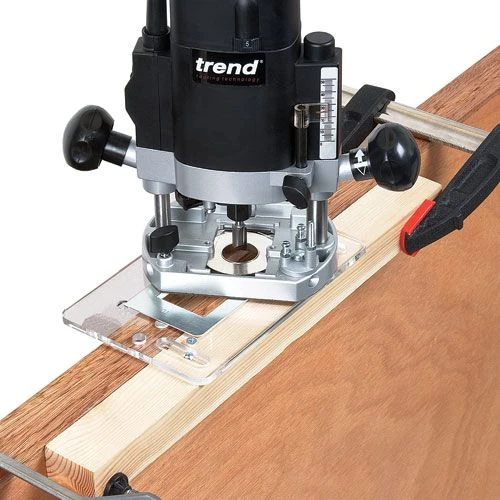

A routing template that allows a router to create a hinge recess on a door.

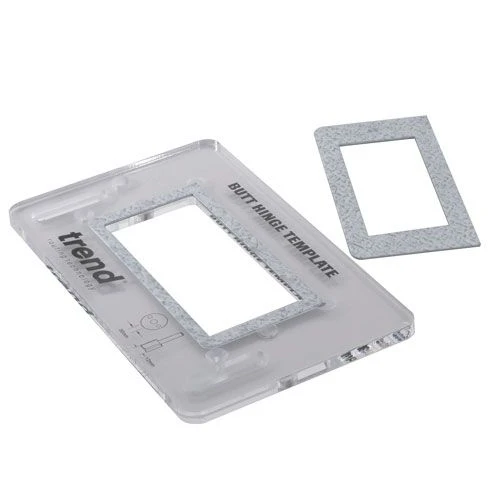

• Made from clear 8mm thick plastic.
• Includes metal templates for 75mm and 100mm butt hinges.
• Magnets in template frame to hold templates.
• Cuts rounded corners which can be removed with a corner chisel or chisel.
• Use on doors from 35mm to 44mm thick.
• Requires 12mm diameter cutter and 30mm guide bush.
• A user made batten 44mm x 34mm x 450mm is also needed.
• Design Reg. No. 00132246-001.
