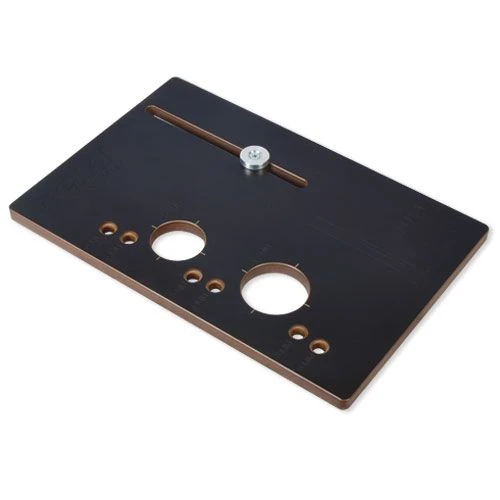

TEMP/CDH/A – Template Cabinet Door Hinge 35 & 26mm

A routing template that allows a router to create a 26mm or 35mm diameter blind hole recess for a circular cabinet door hinge.

• Cuts an accurate recess for either 26mm or 35mm circular hinges.
• Adjustable alloy edge guide for adjustment of recess position from top or bottom of door.
• Removable alloy edge guide for middle hinge recess.
• 3mm and 5mm location holes to accurately position the recesses relative to the edge of the door.
• Engraved centre sight lines.
• Pin holes reversible for left hand and right hand doors.
• Made from hard wearing 12mm thick high pressure laminate.
• Requires 12.7mm diameter cutter, 30mm guide bush and two 100mm throat F-clamps.
