TEMP/LR/A – Template Lock Recess

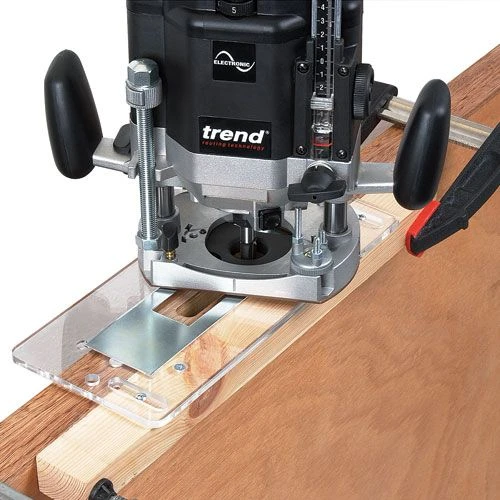

Clear plastic template for use with any plunge router to accurately fit 2, 3 and 5 lever sash and dead mortise locks.

• Clear plastic with magnets to hold metal templates.
• Includes six recess and three mortise templates.
• Requires 12mm diameter x 63mm cut length cutter with 1/2 inch shank and 30mm guide bush. A 1/4 inch extra long cutter can also be used but deepening of mortise with auger bit will be required.
• User made batten 44mm x 34mm x 450mm is also needed.
• Suitable for following locks Additions H32306, H32331, Chubb 3U75, 3G114, ERA 196-62, 201-31, 201-32, 202-32, 208-31, 221-31, 301-32T, 302-32T, 467-32T, 471-32T, 571-32T, latch, ES bed latch, Jewson LISJK072, LISJK100, Legge P3751, P1645, Travis Perkins P19, P20, P22 (802503), P29 (802510), P81, Union L99, Y2201, Y2294 and Yale PM246, PM320 and PM550.
• Magnets in the template frame are to hold the metal templates.
• Design Reg. No. 00132246-002.
• Router not included.
