UNIBASE – Trend UNIBASE – Router Base Adaptor. Allows Other Makes And Models Of Router To Use The Trend Guide Bushes For Increased Diversity.

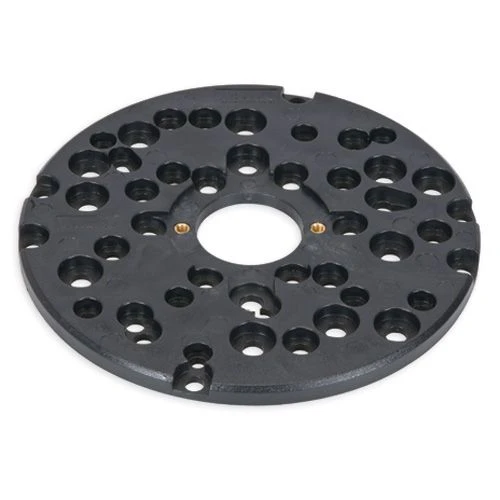

The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.

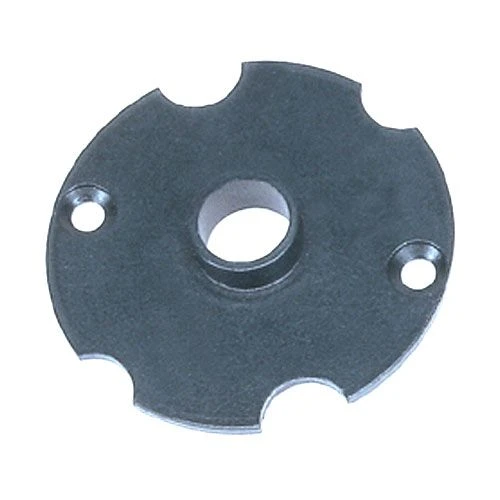

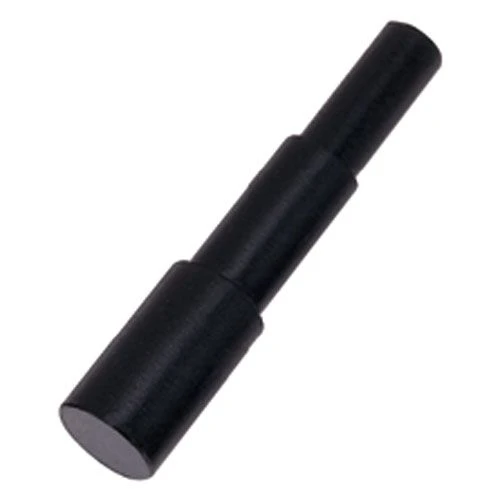

• Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base.
• Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.
• Instructions for fitting

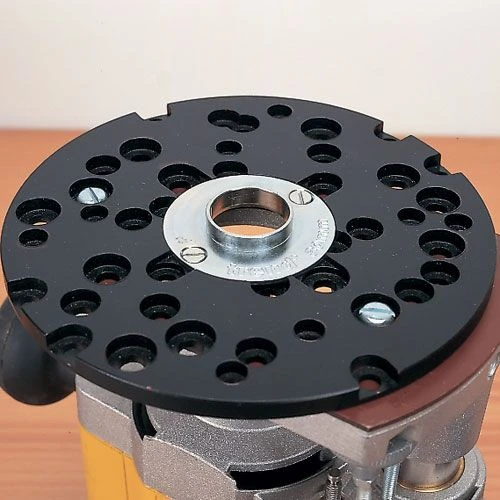

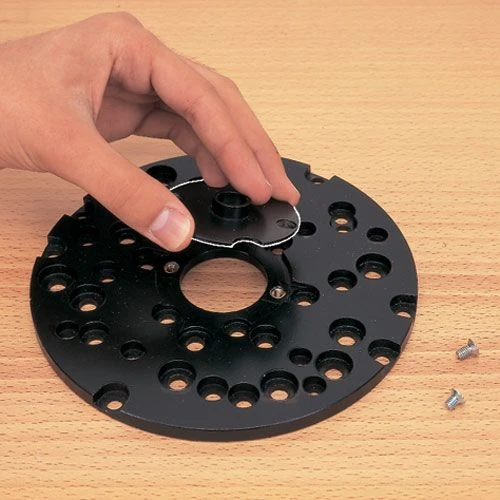

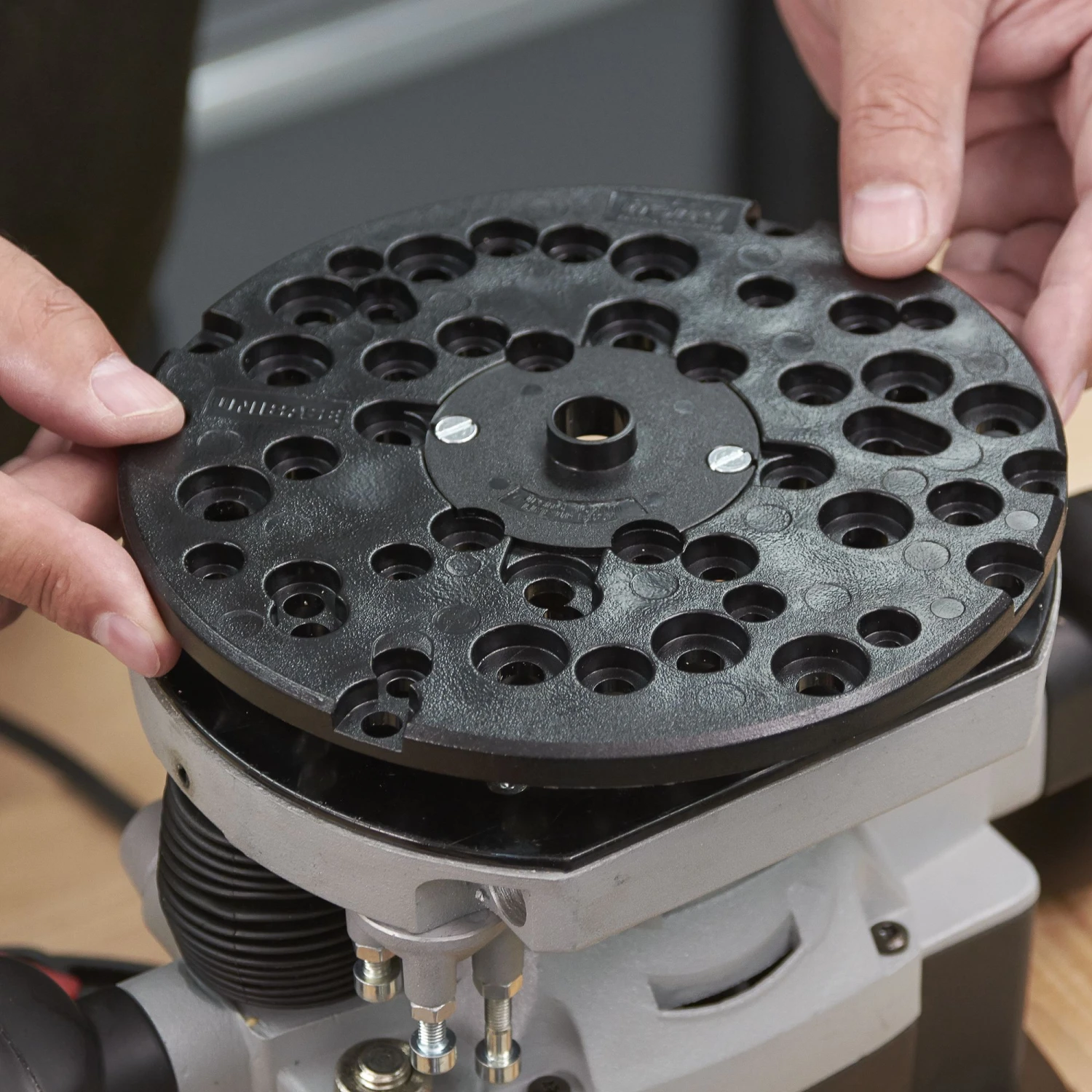

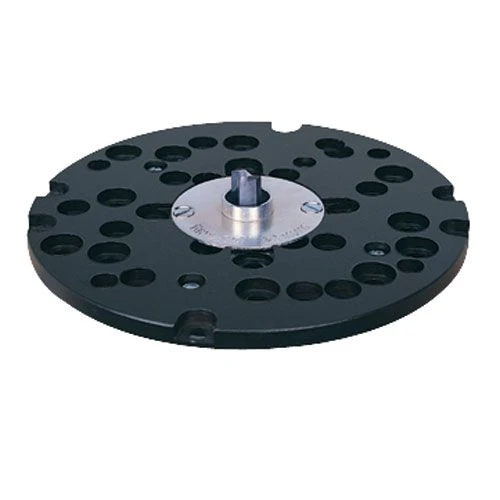

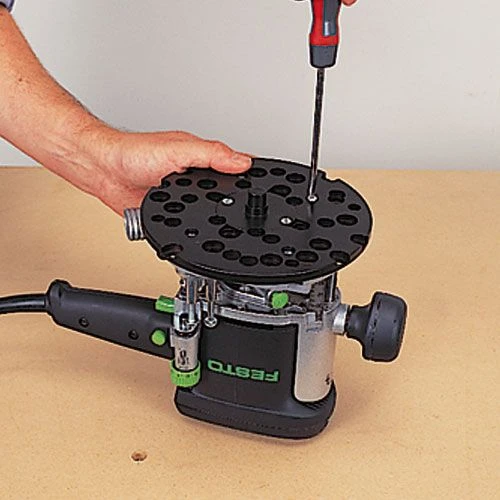

• The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 – GB32). For larger diameter cutters a 40mm guide bush (GB40) is available.
• Ideal for hinge jig and lock jig
